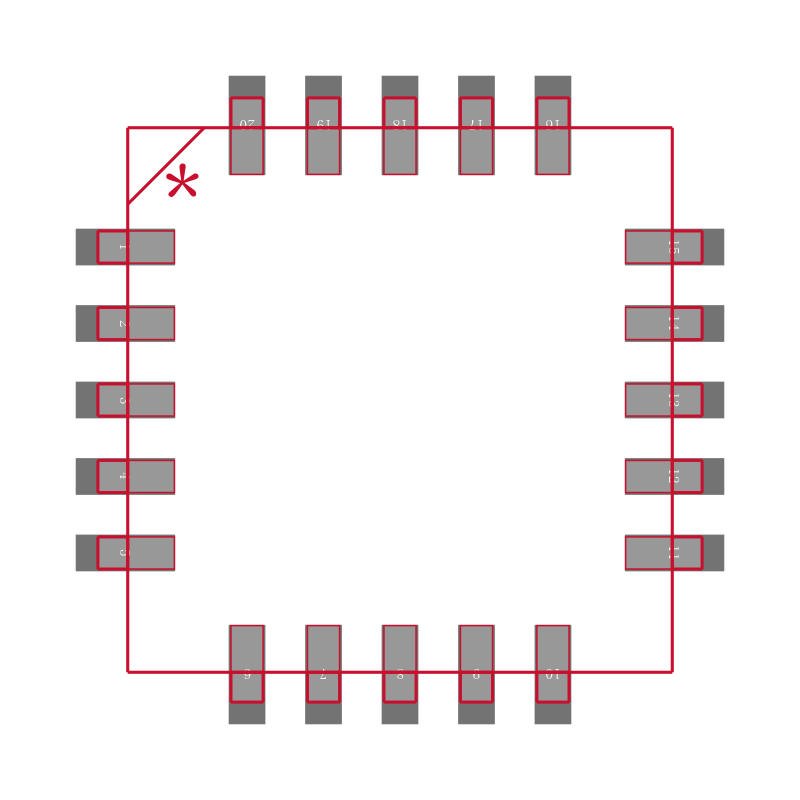

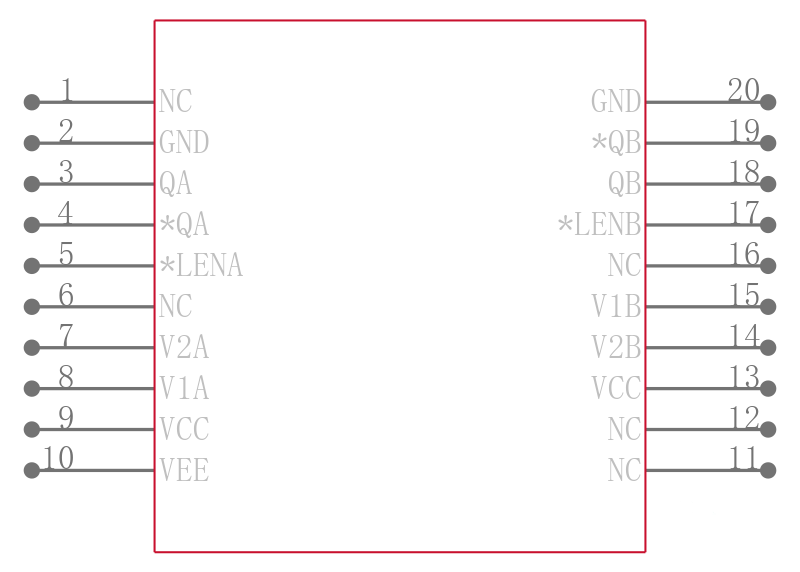

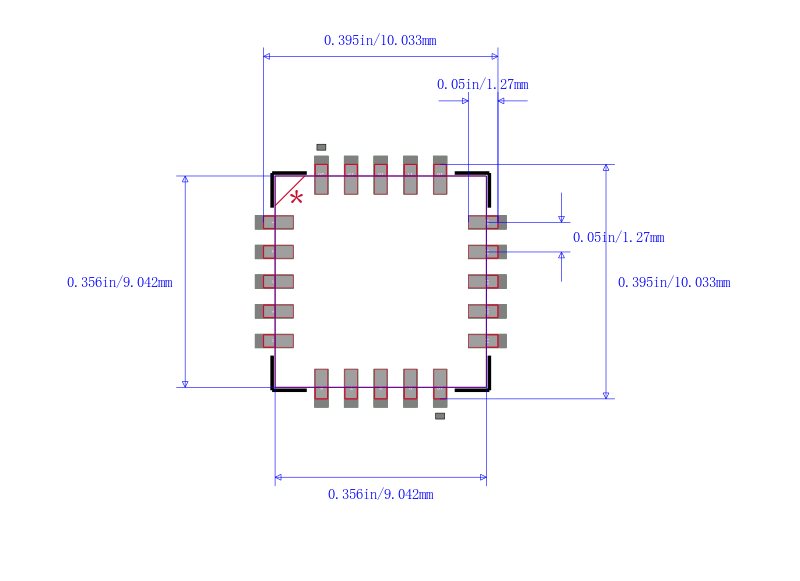

MC10E1651FNR2G

5V/-5V ECL，双ECL输出比较器（带锁存器）

The MC10E1651 comparator is functionally and pin-for-pin compatible with the MC1651 in the MECL III family, but is fabricated using the advanced MOSAIC III process. The MC10E1651 comparator incorporates a fixed level of input hysteresis as well as output compatibility with 10KH logic devices. In addition, a latch is available allowing a sample and hold function to be performed. The device is available in both a 16-pin DIP and a 20-pin surface mount package. The latch enable LENabar and LENbbar input pins operate from standard ECL 10KH logic levels. When the latch enable is at a logic high level the MC10E1651 acts as a comparator, hence Q will be at a logic high level if V1 > V2 V1 is more positive than V2. Qbar is the complement of Q. When the latch enable input goes to a low logic level, the outputs are latched in their present state providing the latch enable setup and hold time constraints are met.The 100 series contains temperature compensation.

Features

---

 |

.

Typical 3.0 dB Bandwidth > 1.0 GHz

.

Typical V to Q Propagation Delay of 775 ps

.

Typical Output Rise/Fall of 350 ps

.

Common Mode Range -2.0 V to +3.0 V

.

Individual Latch Enables

.

Differential Outputs

.

28mV Input Hysteresis

.

Operating Mode: VCC = 5.0 V, VEE = -5.2 V

.

No Internal Input Pulldown Resistors

.

ESD Protection: > 2 KV HBM, > 100 V MM

.

Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test

.

Moisture Sensitivity Level 1

For Additional Information, see Application Note AND8003/D

.

Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34

.

Transistor Count = 85 devices
