极低的电源电流3引脚微处理器复位监视器 Very Low Supply Current 3-Pin Microprocessor Reset Monitors
By using this microprocessor supervisory circuit from you won"t have to worry if something happens to your main processor. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a typical reset threshold voltage of 2.93 V, with a minimum of 2.89 V and a maximum of 2.96 V. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C.
电源电压DC 1.00V min
无卤素状态 Halogen Free
供电电流 0.0025 mA
阈值电压 2.93 V
复位电压Min 2.89 V
复位电压Max 2.96 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3

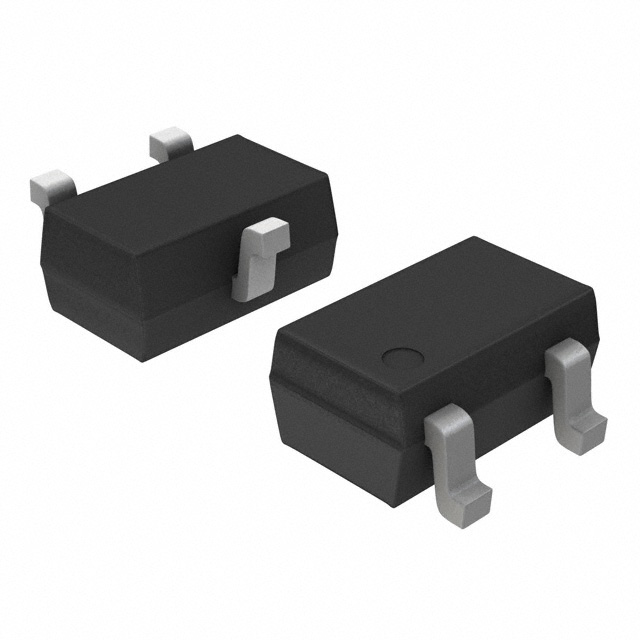

封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.94 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Occupant Comfort, Braking, Occupant Protection, Instrument Cluster, Nagivator, Infotainment, Critical Microprocessor Power Supply Monitoring, Embedded Systems, Battery Powered Equipment, Powertrain, Computers, Body Electronic
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
