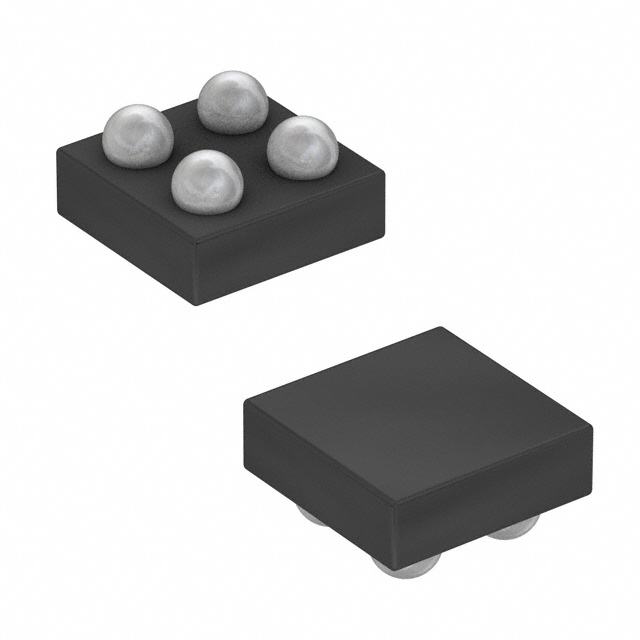

Ic Comp Single Lp 4-Ucsp
Comparator with Voltage Reference Open Drain 4-UCSP 1.05x1.05
得捷:
IC COMP SINGLE LP 4-UCSP
安富利:
The MAX9060–MAX9064 are small single comparators, ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. These comparators are offered in both, a miniature 4-bump UCSP™ package with a 1mm x 1mm footprint as small as two 0402 resistors, and a 5-pin SOT23 package.The MAX9060–MAX9064 feature an input voltage range of -0.3V to +5.5V independent of supply voltage. These devices maintain high impedance at the inputs even when powered down VCC or VREF = 0V. They also feature internal filtering to provide high RF immunity.The MAX9060 and MAX9061 have open-drain outputs and draw quiescent supply current from a user-supplied reference voltage, VREF, between 0.9V and 5.5V. These devices consume only 100nA max supply current and operate over the extended -40°C to +85°C temperature range.The MAX9062, MAX9063 and MAX9064 are single comparators with an internal 0.2V reference. These devices feature either a push-pull or an open-drain output. They consume only 700nA max supply current. The MAX9062, MAX9063, and MAX9064 operate down to VCC = 1V over the extended -40°C to +85°C temperature range.
