On Semiconductor### 微处理器电源电压监控和复位电路电源电压监测和监控电路，用于台式机、便携式计算机和笔记本电脑、测试和测量仪器、便携式电池供电设备和多输出电源。电源电压探测器 电源电压监控器 电源监控器 微处理器监控 微处理器电压监控器 微控制器复位电路
Keep your circuit secure if your main processor goes out by using this microprocessor supervisory circuit from . In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a typical reset threshold voltage of 1.2 V, with a minimum of 1.18 V and a maximum of 1.22 V. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C.
电源电压DC 1.00V min
无卤素状态 Halogen Free
供电电流 800 nA
阈值电压 1.2 V
复位电压Min 1.18 V
复位电压Max 1.22 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3

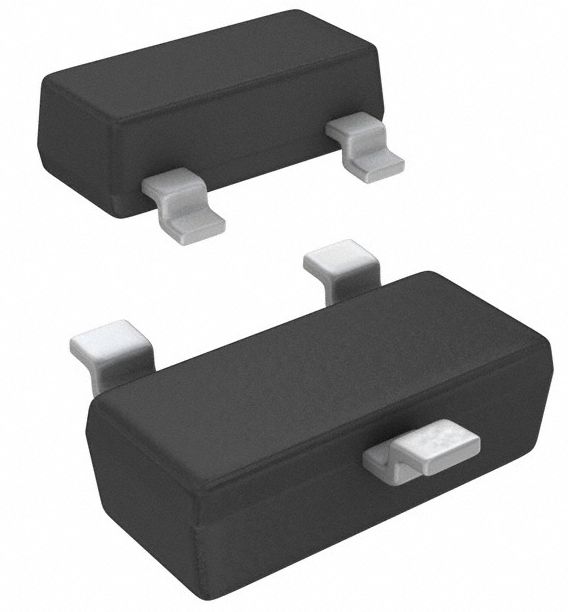

封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.01 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Nagivator, Body Electronic, Occupant Comfort, Embedded Systems, Infotainment, Critical Microprocessor Power Supply Monitoring, Battery Powered Equipment, Computers, Braking, Powertrain, Occupant Protection, Instrument Cluster
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
