极低的电源电流3引脚微处理器复位监视器 Very Low Supply Current 3-Pin Microprocessor Reset Monitors
By using this microprocessor supervisory circuit from you won"t have to worry if something happens to your main processor. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C. It has a typical reset threshold voltage of 2.93 V, with a minimum of 2.89 V and a maximum of 2.96 V.
电源电压DC 1.00V min
无卤素状态 Halogen Free
供电电流 0.0025 mA
针脚数 3
阈值电压 2.93 V
复位电压Min 2.89 V
复位电压Max 2.96 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3

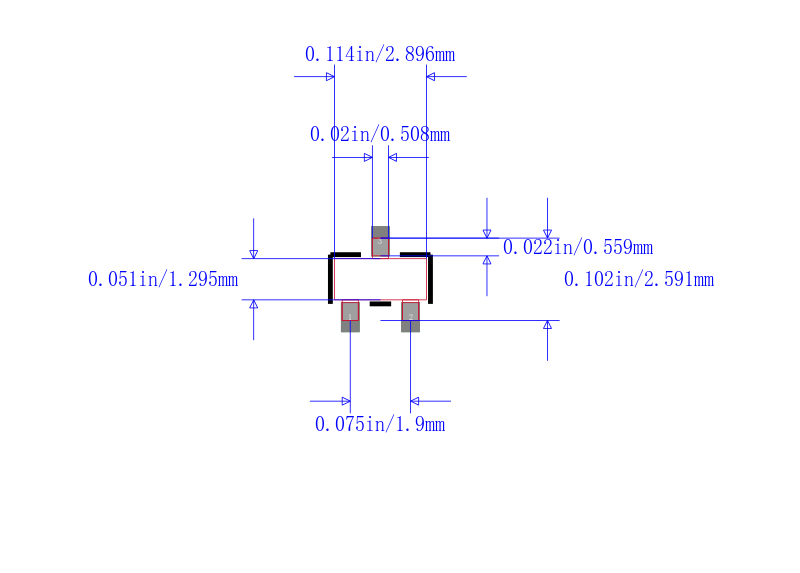

封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 105℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Powertrain, Infotainment, Instrument Cluster, Nagivator, Embedded Systems, Battery Powered Equipment, Computers, Braking, Body Electronic, Critical Microprocessor Power Supply Monitoring, Occupant Protection, Occupant Comfort
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MAX809SN293D2T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MAX809STRG 安森美 | 类似代替 | MAX809SN293D2T1G和MAX809STRG的区别 |
MAX809SN293D1T1G 安森美 | 类似代替 | MAX809SN293D2T1G和MAX809SN293D1T1G的区别 |
MAX809SN293D3T1G 安森美 | 类似代替 | MAX809SN293D2T1G和MAX809SN293D3T1G的区别 |
