Inverting DC/DC Converters Integrated Switch, Texas Instruments### 直流/直流开关调节器转换器(集成开关),Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。

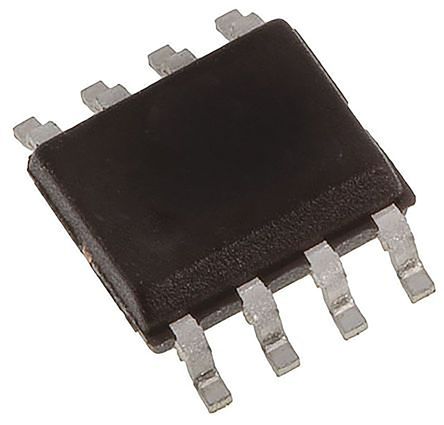

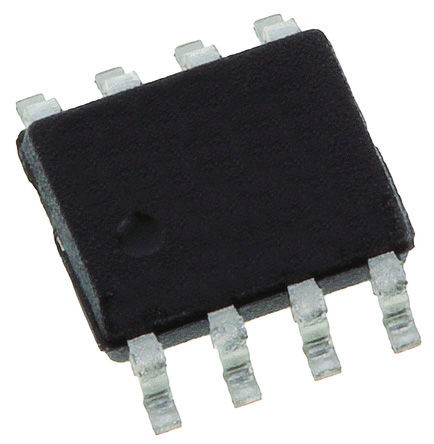

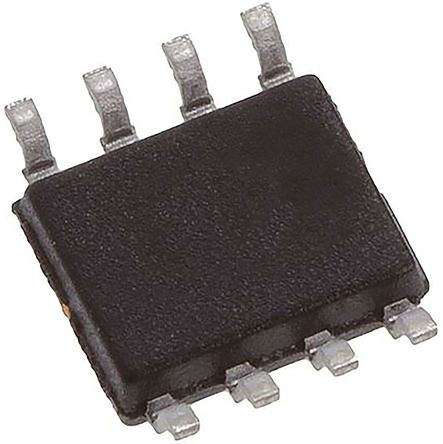

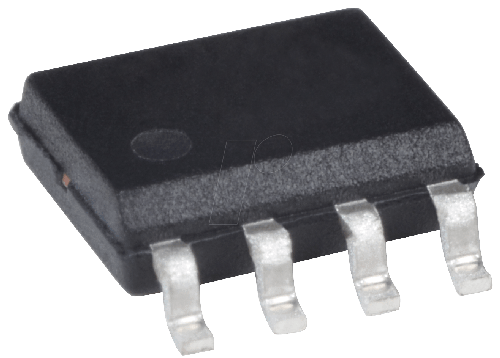

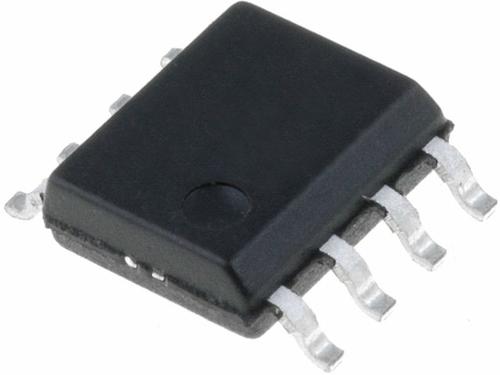

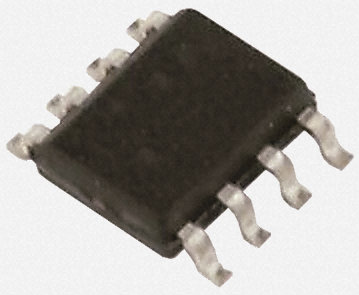

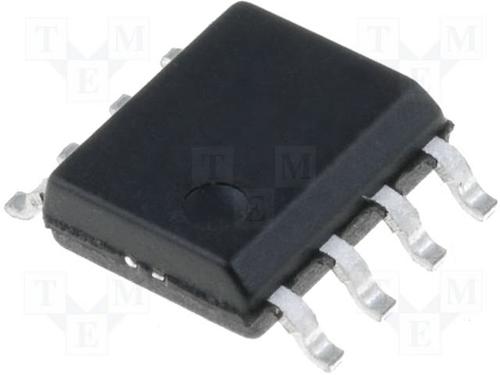

The is a boost/buck/inverting switching regulator in 8 pin SOIC package. It is an easy to use regulator containing all primary circuitry needed for building simple DC to DC converters. The MC33063AD regulator primarily consist of an internal temperature compensated reference, comparator, oscillator, PWM controller with active current limiting, driver and high current output switch. This device requires minimal external components to build converters in boost, buck and inverting topologies.
This device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.
频率 100 kHz
输出接口数 1
输出电压 1.25V ~ 40V
输出电流 1.5 A
通道数 1
针脚数 8
静态电流 4.00 mA
调节输出数 1
开关频率 100 kHz
输入电压Max 40 V
输入电压Min 3 V
输出电压Max 40 V
输出电压Min 1.25 V
输出电流Max 1.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Min 3 V
输入电压 3V ~ 40V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
制造应用 测试与测量, 通信与网络, 便携式器材, 消费电子产品, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC33063AD TI 德州仪器 | 当前型号 | 当前型号 |
MC33063ADE4 德州仪器 | 完全替代 | MC33063AD和MC33063ADE4的区别 |
MC34063AD 德州仪器 | 类似代替 | MC33063AD和MC34063AD的区别 |
