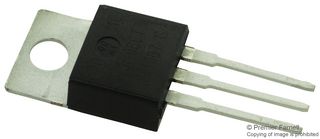

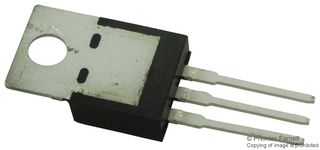

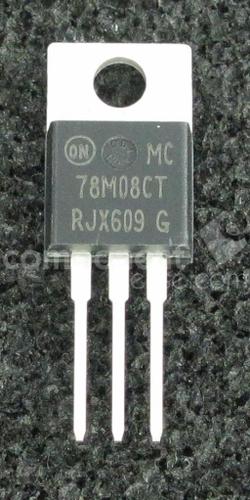

ON SEMICONDUCTOR MC78M08CTG 线性稳压器, 固定, 7808, 正向, 14V至35V输入, 8V和0.5A输出, TO-220-3
The is a Positive Voltage Regulator with 8V output voltage. It is identical to the popular device, except that it is specified for only half the output current. Like the device 3-terminal regulator is intended for local, on-card voltage regulation. It features internal current limiting and thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine to makes this device remarkably rugged under most operating conditions. Maximum output current with adequate heat-sinking is 500mA.
- .
- No external components required
- .
- ±2% High accuracy
额定电流 500 mA
无卤素状态 Halogen Free
输出接口数 1
输入电压DC 35.0V max
输出电压 8 V
输出电流 500 mA
针脚数 3
极性 P-Channel
静态电流 3.2 mA
跌落电压 2V @350mA
热阻 5℃/W RθJC
输入偏置电流 3.2 mA
输入电压Max 35 V
输入电压Min 14 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min 0 ℃
电源电压 35 V
输入电压 ≤35 V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.28 mm
封装 TO-220-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, 车用, Automotive, Industrial, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC78M08CTG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC78M08BTG 安森美 | 完全替代 | MC78M08CTG和MC78M08BTG的区别 |
MC7805ACTG 安森美 | 类似代替 | MC78M08CTG和MC7805ACTG的区别 |
MC7808ACTG 安森美 | 类似代替 | MC78M08CTG和MC7808ACTG的区别 |
