Inverting DC/DC Converters Integrated Switch, Texas Instruments### 直流/直流开关调节器转换器(集成开关),Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
The MC33063A and MC34063A devices are easy-to-use ICs containing all the primary circuitry needed for building simple DC-DC converters. These devices primarily consist of an internal temperature-compensated reference, a comparator, an oscillator, a PWM controller with active current limiting, a driver, and a high-current output switch. Thus, the devices require minimal external components to build converters in the boost, buck, and inverting topologies.
The MC33063A device is characterized for operation from –40°C to 85°C, while the MC34063A device is characterized for operation from 0°C to 70°C.
频率 100 kHz
输出接口数 1
输出电压 1.25V ~ 40V
输出电流 1.5 A
通道数 1
针脚数 8
静态电流 4.00 mA
调节输出数 1
开关频率 100 kHz
输入电压Max 40 V
输入电压Min 3 V
输出电压Min 1.25 V
输出电流Max 1.5 A
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 3V ~ 40V
安装方式 Surface Mount
引脚数 8

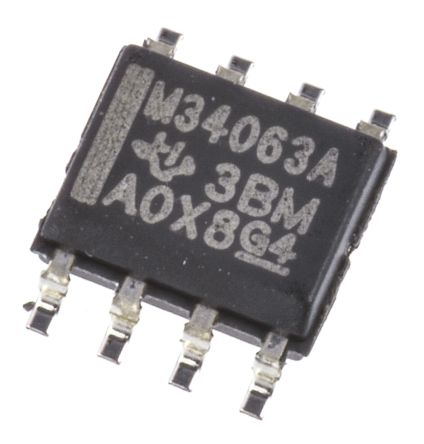

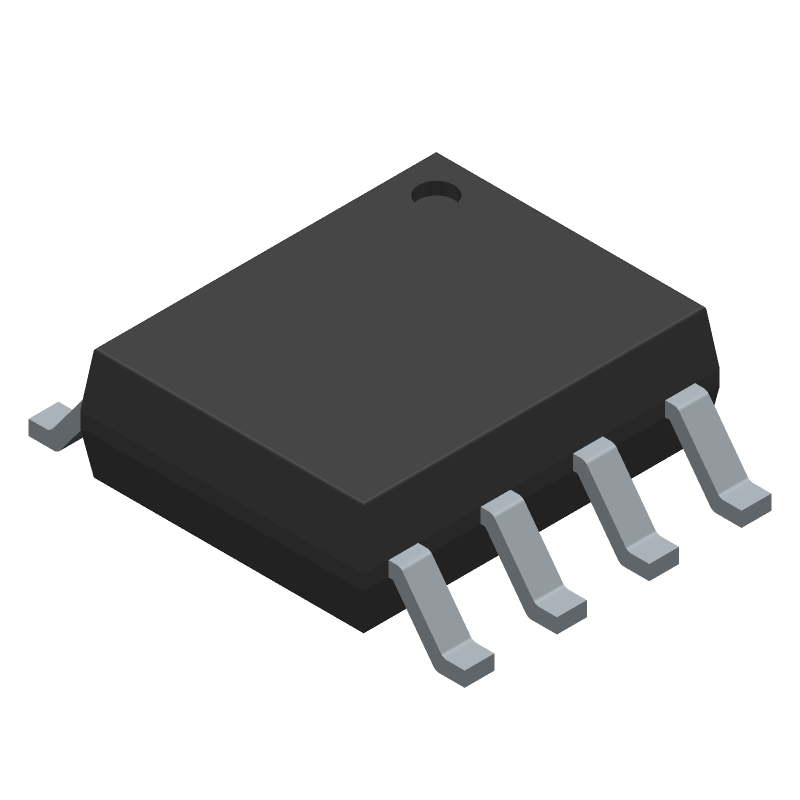

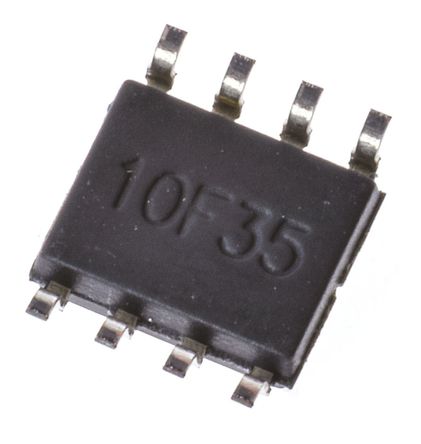

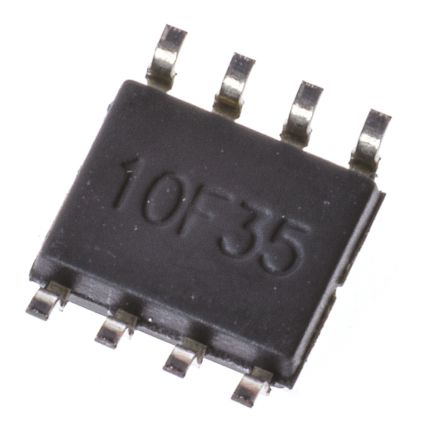

封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC34063AD TI 德州仪器 | 当前型号 | 当前型号 |
MC33063AD 德州仪器 | 类似代替 | MC34063AD和MC33063AD的区别 |
MC34063ADE4 德州仪器 | 类似代替 | MC34063AD和MC34063ADE4的区别 |
MC34063ADRE4 德州仪器 | 类似代替 | MC34063AD和MC34063ADRE4的区别 |
