1A负压稳压器
The MC7900 series of fixed output negative voltage regulators are intended as complements to the popular MC7800 series devices. These negative regulators are available in the same seven−voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative MC7900 series.
output currents in excess of 1.0 A.
•No External Components Required
•Internal Thermal Overload Protection
•Internal Short Circuit Current Limiting
•Output Transistor Safe−Area Compensation
•Available in 2% Voltage Tolerance
无卤素状态 Halogen Free
输出接口数 1
输出电压 8 V
输出电流 1 A
极性 N-Channel
跌落电压 1.3V @1A
输入电压Max 35 V
输入电压Min 10 V
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 4 %
安装方式 Surface Mount
引脚数 3

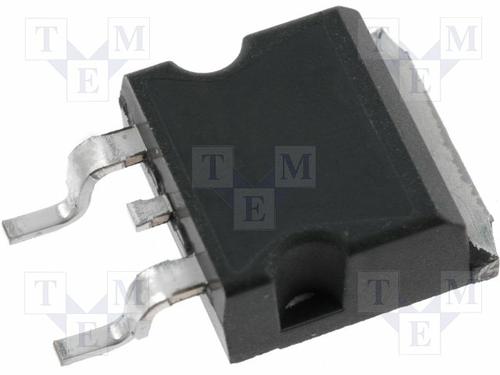

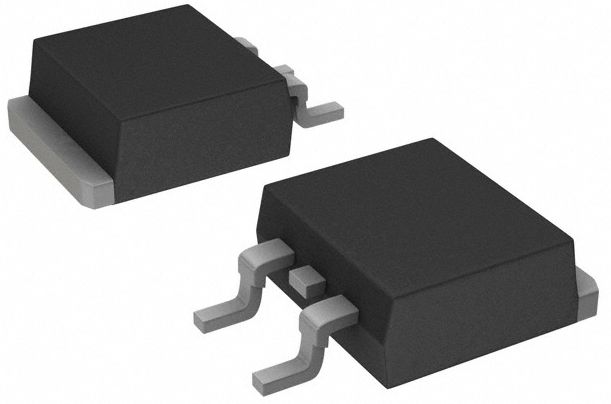

封装 TO-263-3
长度 10.24 mm
宽度 9.35 mm
高度 4.57 mm
封装 TO-263-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC7908CD2TR4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC7908CD2TR4 安森美 | 完全替代 | MC7908CD2TR4G和MC7908CD2TR4的区别 |
MC7908CD2TG 安森美 | 类似代替 | MC7908CD2TR4G和MC7908CD2TG的区别 |
MC7908CD2T 安森美 | 类似代替 | MC7908CD2TR4G和MC7908CD2T的区别 |
