ON SEMICONDUCTOR MC34164P-3G 芯片, 线性稳压器 3-TO-92
Have an extra layer of protection from under and overvoltage conditions in a circuit, keeping all your components safe with this supply voltage supervisory voltage monitor IC from . This device has a maximum power dissipation of 700 mW. Its maximum power dissipation is 700 mW. This device has a minimum operating supply voltage of 1 V and a maximum of 10 V. It has a typical reset threshold voltage of 2.71 V, with a minimum of 2.55 V and a maximum of 2.8 V. This voltage supervisor IC has a minimum operating temperature of 0 °C and a maximum of 70 °C.
电源电压DC 1.00V min
额定电流 12.0 mA
无卤素状态 Halogen Free
输出电压 12.0 V
供电电流 32.0 µA
针脚数 3
耗散功率 700 mW
阈值电压 2.71 V
复位电压Min 2.55 V
复位电压Max 2.8 V
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 700 mW
电源电压Max 10 V
电源电压Min 1 V
安装方式 Through Hole
引脚数 3

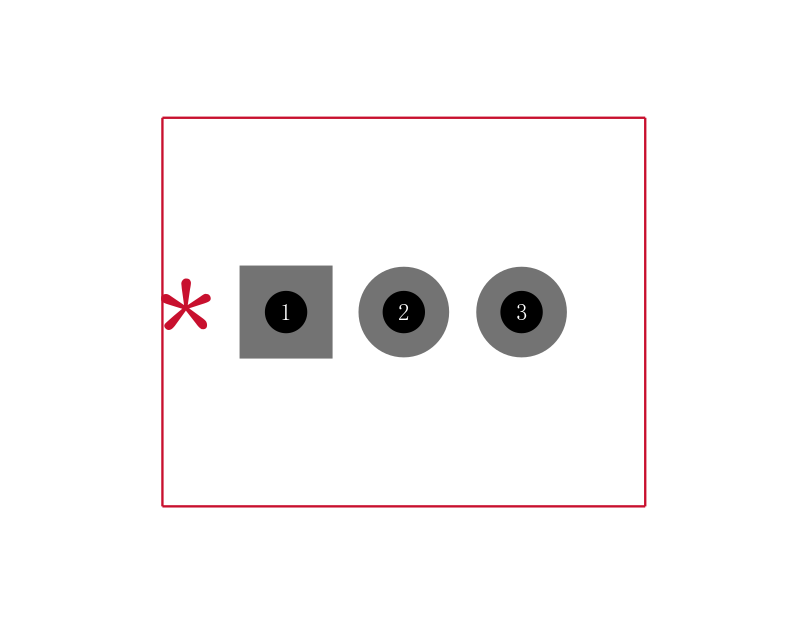

封装 TO-226-3
长度 5.2 mm
宽度 4.19 mm
高度 5.33 mm
封装 TO-226-3
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC34164P-3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC34164P-5G 安森美 | 类似代替 | MC34164P-3G和MC34164P-5G的区别 |
MC33164P-3G 安森美 | 类似代替 | MC34164P-3G和MC33164P-3G的区别 |
MC34164P-3RPG 安森美 | 类似代替 | MC34164P-3G和MC34164P-3RPG的区别 |
