MCP1700 低压降电压稳压器### LDO(低压降)线性稳压器,Microchip
MCP1700 低压降电压稳压器
欧时:
Microchip MCP1700T-5002E/MB LDO 稳压器, 5 V输出, 250mA最大输出, 3%精确度, 2.3 → 6 V输入, 3引脚
得捷:
IC REG LINEAR 5V 250MA SOT89-3
立创商城:
MCP1700T-5002E/MB
艾睿:
This LDO MCP1700T-5002E/MB linear regulator from Microchip Technology is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.178@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.25Min A. Use this part at voltages between 2.3 V and 6 V. With a fixed output that has a voltage of 5 V, this is power management at its best. By operating at a load regulation of 1%Typ and line regulation of 0.75%/VTyp you can provide a constant voltage at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.35@250mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
250MA CMOS LDO, ISUPPLY 1UA AND 2% VOUTACCURACY
安富利:
LDO Regulator Pos 5V 0.25A 4-Pin3+Tab SOT-89 T/R
Chip1Stop:
LDO Regulator Pos 5V 0.25A 4-Pin3+Tab SOT-89 T/R
Verical:
LDO Regulator Pos 5V 0.25A Automotive 4-Pin3+Tab SOT-89 T/R
DeviceMart:
IC REG LDO 5V .25A SOT-89-3
输出接口数 1
输入电压DC 2.30V min
输出电压 5 V
输出电流 250 mA
供电电流 4 μA
耗散功率 1.635 W
静态电流 0.0016 mA
输出电容类型 Ceramic
跌落电压 0.178V @250mA
上升时间 500 μs
输入电压Max 6 V
输入电压Min 2.3 V
输出电压Min 5 V
输出电流Max 250 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 6 V
安装方式 Surface Mount
引脚数 3

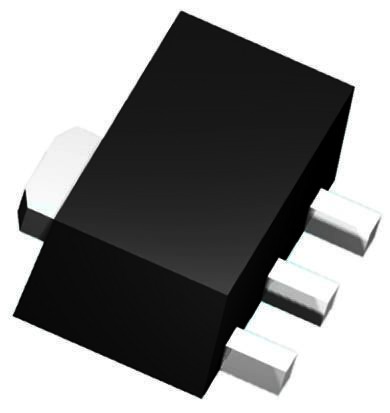

封装 SOT-89-3
长度 4.6 mm
宽度 2.29 mm
高度 1.6 mm
封装 SOT-89-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1700T-5002E/MB Microchip 微芯 | 当前型号 | 当前型号 |
MCP1700T-5002E/TT 微芯 | 类似代替 | MCP1700T-5002E/MB和MCP1700T-5002E/TT的区别 |
MCP1700-5002E/MB 微芯 | 功能相似 | MCP1700T-5002E/MB和MCP1700-5002E/MB的区别 |
