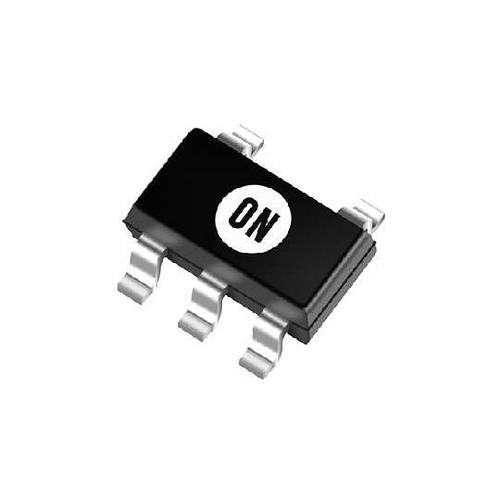

78LC40 线性稳压器,ON Semiconductor低静态电流:1.2 μA 典型 出色的线路和负载调节 最大工作电压 12V ### 线性稳压器,On Semiconductor
78LC40 线性稳压器,
低静态电流:1.2 μA 典型
出色的线路和负载调节
最大工作电压 12V
得捷:
IC REG LINEAR 4V 80MA 5TSOP
欧时:
ON Semiconductor MC78LCxx 系列 MC78LC40NTRG 低压降稳压器, 4 V输出, ±2.5%精确度, 80mA最大输出, 140mW
贸泽:
低压差稳压器 4.0V 80mA CMOS LDO
e络盟:
芯片, 稳压器, LDO, 固定, 4V, 0.1A, SOT-23-5
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO MC78LC40NTRG linear regulator from ON Semiconductor to control your voltage levels! Its typical dropout voltage at current is 0.03@1mA V. This device has a maximum power dissipation of 140 mW. It has an overall accuracy of ±2.5 %. This voltage regulation device&s;s single output can produce a current up to 0.08Typ A. Using the part will provide the power your application needs by requiring a voltage not exceeding 12 V. With a fixed output that has a voltage of 4 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 60mV and line regulation of 0.2%/V. Its maximum power dissipation is 140 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.038@1mA V. Its polarity is positive.
Allied Electronics:
MC78LC40NTRG, Single Low Dropout VoltageRegulator, 80mA 4 V, +/-2.5%, 5-Pin TSOP
安富利:
LDO Regulator Pos 4V 0.08A 5-Pin TSOP T/R
富昌:
MC78LC00 系列 12 V 80 mA 表面贴装 微功耗 稳压器 -TSOT-23-5
Verical:
LDO Regulator Pos 4V 0.08A 5-Pin TSOP T/R
Newark:
# ON SEMICONDUCTOR MC78LC40NTRG Fixed LDO Voltage Regulator, 5V to 12V, 30mV Dropout, 4Vout, 100mAout, SOT-23-5
力源芯城:
三端小电流正固定电压稳压器
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 4V 80mA 5-TSOP
DeviceMart:
IC REG LDO 4V 80MA 5TSOP
额定功率 140 mW
无卤素状态 Halogen Free
输出接口数 1
输出电压 4 V
输出电流 80 mA
针脚数 5
极性 P-Channel
耗散功率 140 mW
静态电流 0.0011 mA
跌落电压 0.03V @1mA
输入电压Max 12 V
输入电压Min 5 V
输出电流Max 80 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 140 mW
精度 ±2.5 %
输入电压 ≤12 V
安装方式 Surface Mount
引脚数 5

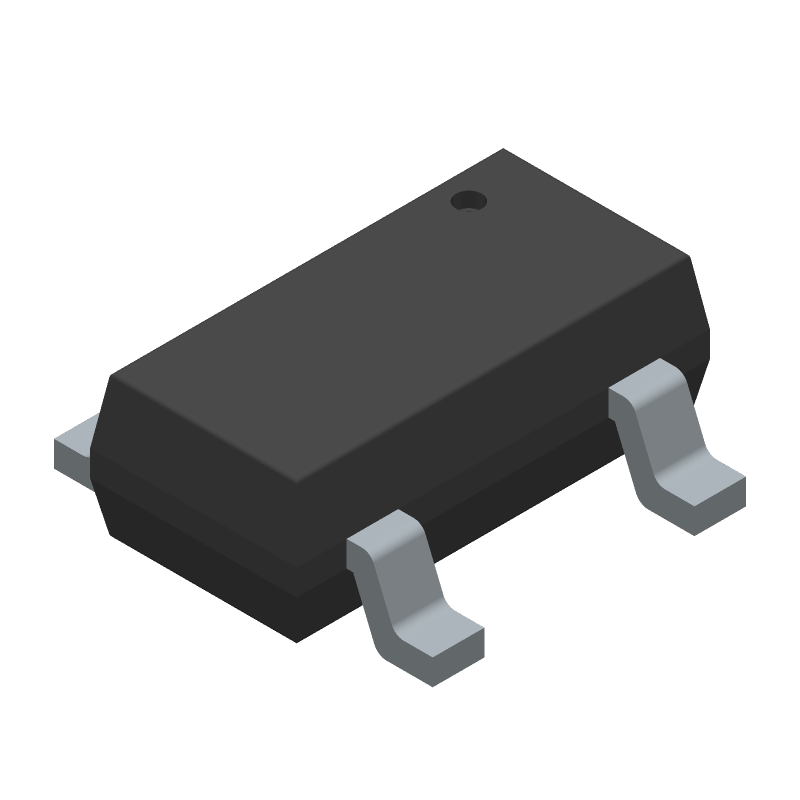

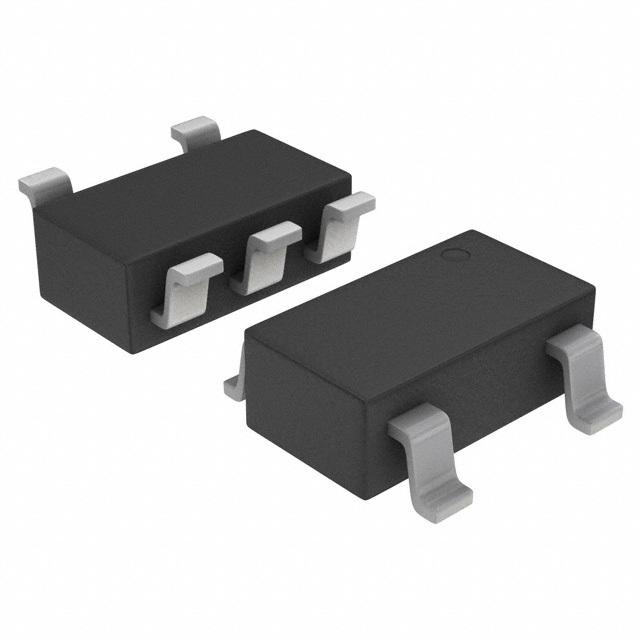

封装 TSOT-23-5
长度 3 mm
宽度 1.5 mm
高度 1 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC78LC40NTRG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC78LC40NTR 安森美 | 完全替代 | MC78LC40NTRG和MC78LC40NTR的区别 |
