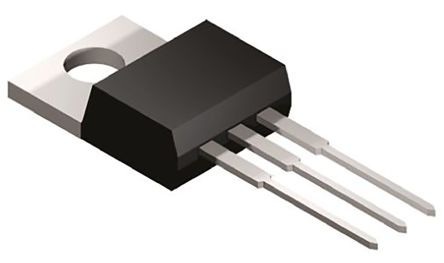

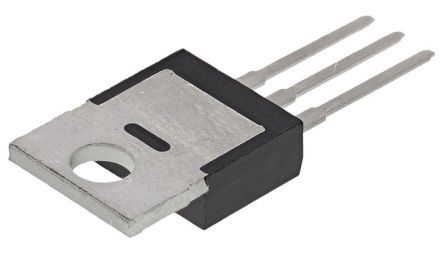

MC78M15ACTG

MC78M00/MC78M00A 线性电压调节器，ON Semiconductor**ON Semiconductor**** MC78M00**/**MC78M00** 线性电压调节器是强大的设备，它组合了内部电流限制、热关闭以及输出晶体管安全操作区域保护。 它可用于在多种应用，包括本地和卡式电压调节。 提供 5 V、8 V、12 V、15 V、18 V、20 V 和 24 V 型号，与适当的散热片配合使用时，输出电流高达 500 mA。 提供无铅封装 ### 线性电压调节器，On Semiconductor

MC78M00/MC78M00A 线性稳压器，

**ON Semiconductor MC78M00**/**MC78M00** 线性稳压器是强大的设备，它组合了内部电流限制、热关闭以及输出晶体管安全操作区域保护。 它可用于在多种应用，包括本地和卡式电压稳压。 提供 5 V、8 V、12 V、15 V、18 V、20 V 和 24 V 型号，与适当的散热片配合使用时，输出电流高达 500 mA。

提供无铅封装

### 线性稳压器，On Semiconductor

欧时:
### MC78M00/MC78M00A 线性稳压器，ON Semiconductor**ON Semiconductor MC78M00**/**MC78M00** 线性稳压器是强大的设备，它组合了内部电流限制、热关闭以及输出晶体管安全操作区域保护。 它可用于在多种应用，包括本地和卡式电压稳压。 提供 5 V、8 V、12 V、15 V、18 V、20 V 和 24 V 型号，与适当的散热片配合使用时，输出电流高达 500 mA。 提供无铅封装 ### 线性稳压器，On Semiconductor

得捷:
IC REG LINEAR 15V 500MA TO220AB

立创商城:
MC78M15ACTG

贸泽:
Linear Voltage Regulators 15V 500mA Positive

e络盟:
线性稳压器, 固定, 23 V至35 V输入, 15 V/500 mA输出, TO-220-3

艾睿:
Keep calm and stay stable by implementing this standard MC78M15ACTG linear regulator developed by ON Semiconductor. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 2@350mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. The best way to provide power to your application is by using this, which needs a voltage lower than 35 V. With a fixed output that has a voltage of 15 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 300mV and line regulation of 50mV. This product comes in rail packaging to keep individual parts separated and protected. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. Its polarity is positive.

Allied Electronics:
MC78M15ACTG, Single Linear Voltage Regulator, 700mA 15 V, +/-2%, 3-Pin TO-220

Chip1Stop:
LDO Regulator Pos 15V 0.5A 3-Pin3+Tab TO-220 Rail

TME:
Voltage regulator; linear, fixed; 15V; 0.5A; TO220AB; THT; 0÷125°C

Verical:
Standard Regulator Pos 15V 0.5A 3-Pin3+Tab TO-220 Rail
