MC7812 线性电压调节器,ON SemiconductorON Semiconductor MC7812 线性电压调节器适用于固定电压调节。 7812 系列调节器 IC 具有超过 1A 的电流输出。 无需外部元件,尽管可通过外部设备调节电压和电流。 ON Semiconductor 正线性调节器具有各种功能,且可用于电子行业。 应用包括:本地附加卡调节、电源和配电系统。 输出电压:12 V,4% 容差 内部热过载保护 内部短路电流限制 输出晶体管安全区域补偿 ### 线性电压调节器,On Semiconductor
MC7812 线性电压调节器,
ON Semiconductor MC7812 线性电压调节器适用于固定电压调节。 7812 系列调节器 IC 具有超过 1A 的电流输出。 无需外部元件,尽管可通过外部设备调节电压和电流。
ON Semiconductor 正线性调节器具有各种功能,且可用于电子行业。 应用包括:本地附加卡调节、电源和配电系统。
输出电压:12 V,4% 容差
内部热过载保护
内部短路电流限制
输出晶体管安全区域补偿
得捷:
IC REG LINEAR 12V 1A D2PAK
立创商城:
MC7812ACD2TR4G
欧时:
### MC7812 线性电压调节器,ON SemiconductorON Semiconductor MC7812 线性电压调节器适用于固定电压调节。 7812 系列调节器 IC 具有超过 1A 的电流输出。 无需外部元件,尽管可通过外部设备调节电压和电流。 ON Semiconductor 正线性调节器具有各种功能,且可用于电子行业。 应用包括:本地附加卡调节、电源和配电系统。 输出电压:12 V,4% 容差 内部热过载保护 内部短路电流限制 输出晶体管安全区域补偿 ### 线性电压调节器,On Semiconductor
贸泽:
Linear Voltage Regulators 12V 1A Positive
e络盟:
ON SEMICONDUCTOR MC7812ACD2TR4G 线性稳压器, 固定, 7812, 35V输入, 12V和1A输出, TO-263-3
艾睿:
Never worry about components not turning off and on due to lack of voltage with this standard MC7812ACD2TR4G linear regulator from ON Semiconductor. Its typical dropout voltage at current is 2@1A V. It has an overall accuracy of ±4 %. This voltage regulation device&s;s single output can produce a current up to 1Min A. The best way to provide power to your application is by using this, which needs a voltage lower than 35 V. With a fixed output that has a voltage of 12 V, this is power management at its best. A load regulation of 25mV and line regulation of 120mV is necessary for providing a constant voltage level at your output. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of 0 °C to 125 °C.
Allied Electronics:
MC7812ACD2TR4G, Single Linear Voltage Regulator, 1A 12 V, 3-Pin D2PAK
安富利:
LDO Regulator Pos 12V 1A 3-Pin2+Tab D2PAK T/R
TME:

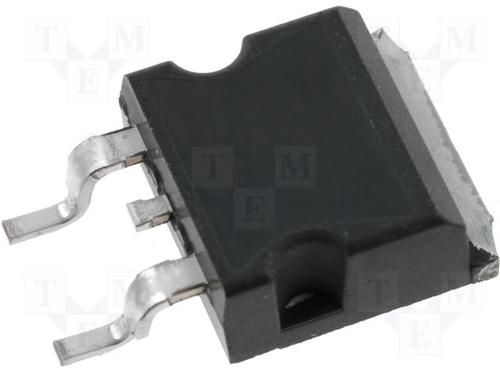

Voltage regulator; linear, fixed; 12V; 1A; D2PAK; SMD; 0÷125°C; ±4%
Verical:
Standard Regulator Pos 12V 1A 3-Pin2+Tab D2PAK T/R
力源芯城:
三端正固定电压的稳压器
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 12V 1A D2PAK
DeviceMart:
IC REG LDO 12V 1A D2PAK
工作电压 14.8V ~ 27V
额定功率 15 W
无卤素状态 Halogen Free
输出接口数 1
输出电压 12 V
输出电流 1 A
供电电流 6 mA

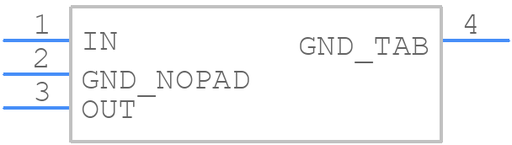

针脚数 3
极性 P-Channel
静态电流 6 mA
跌落电压 2V @1A
输入电压Max 35 V
输入电压Min 35 V
输出电压Min 12 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±4 %
输入电压 ≤35 V
安装方式 Surface Mount
引脚数 3
封装 TO-263-3

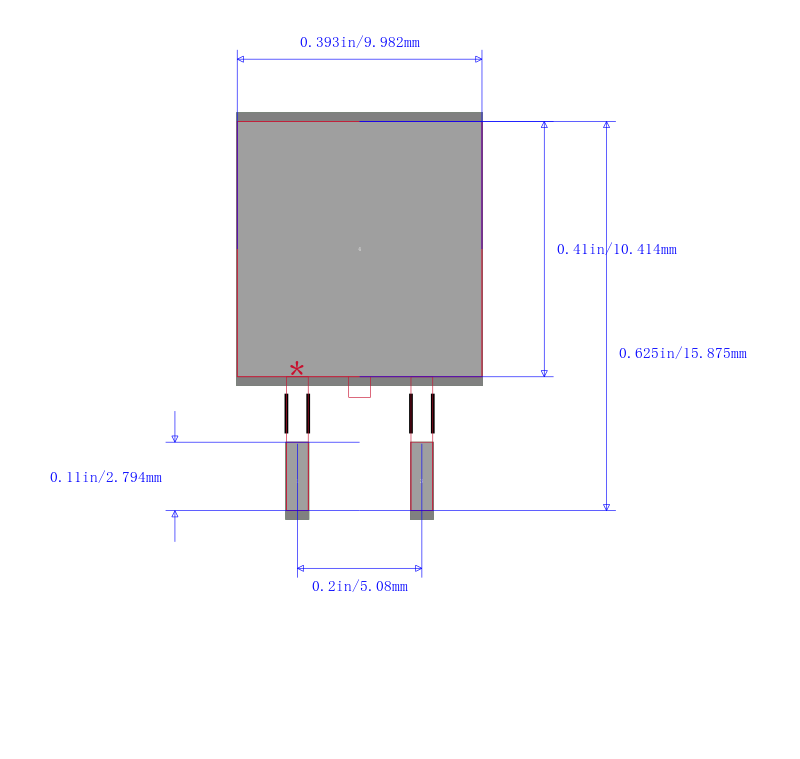

长度 10.24 mm
宽度 9.347 mm
高度 4.572 mm
封装 TO-263-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC7812ACD2TR4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC7812CD2TR4 安森美 | 完全替代 | MC7812ACD2TR4G和MC7812CD2TR4的区别 |
MC7812ACD2T 安森美 | 完全替代 | MC7812ACD2TR4G和MC7812ACD2T的区别 |
MC7812CDTRKG 安森美 | 类似代替 | MC7812ACD2TR4G和MC7812CDTRKG的区别 |
