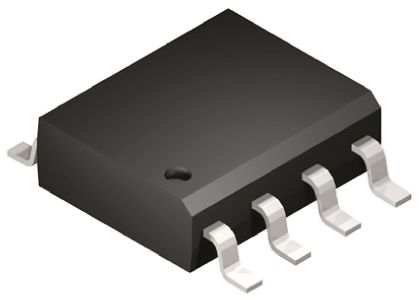

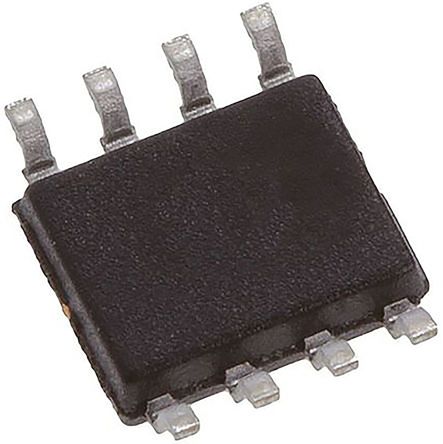

ON SEMICONDUCTOR MC33269DR2-3.3G 稳压器, 固定LDO, 20V输入, 1.1V压差, 3.3V/800mA输出, SOIC-8 新
低压降 LDO 线性电压调节器,550mA 至 800mA,
### LDO(低压降)线性稳压器,ON Semiconductor
低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 3.3V 800MA 8SOIC
立创商城:
正 Vin=20V Vout=3.3V 800mA 55dB@120Hz
欧时:
ON Semiconductor MC33269DR2-3.3G 4输出 LDO 稳压器, 3.3 V输出, 800mA最大输出, 1%精确度
e络盟:
稳压器, 固定LDO, 20V输入, 1.1V压差, 3.3V/800mA输出, SOIC-8
艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO MC33269DR2-3.3G linear regulator from ON Semiconductor. Its typical dropout voltage at current is 1@500mA|1.1@800mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.8Typ A. By working with a maximum input voltage of 20 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.5% and line regulation of 0.3%. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum dropout voltage is 1.25@500mA|1.35@800mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Allied Electronics:
MC33269DR2-3.3G, 4 LDOVoltage Regulator, 800mA, 3.3V 1%, Maximum of 20Vin, 8-Pin SOIC
安富利:
LDO Regulator Pos 3.3V 0.8A 8-Pin SOIC N T/R
富昌:
MC33269 系列 20 V 800 mA 表面贴装 低压差稳压器-SO-8
Chip1Stop:
LDO Regulator Pos 3.3V 0.8A 8-Pin SOIC N T/R
Newark:
# ON SEMICONDUCTOR MC33269DR2-3.3G LDO, FIXED, 0.8A, 3.3V, SOIC-8
力源芯城:
800mA低压差稳压器
DeviceMart:
IC REG LDO 3.3V .8A 8SOIC
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 800mA 8-SOIC
无卤素状态 Halogen Free
输出接口数 1
输入电压DC 20.0V max
输出电压 3.3 V
输出电流 800 mA
针脚数 8
极性 P-Channel
静态电流 20 mA
跌落电压 1.1 V
输入电压Max 20 V
输出电压Min 3.3 V
输出电流Max 800 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤20 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC33269DR2-3.3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC33269D-3.3G 安森美 | 完全替代 | MC33269DR2-3.3G和MC33269D-3.3G的区别 |
MC33269DR2-3.3 安森美 | 完全替代 | MC33269DR2-3.3G和MC33269DR2-3.3的区别 |
MC33269D-3.3 安森美 | 完全替代 | MC33269DR2-3.3G和MC33269D-3.3的区别 |
