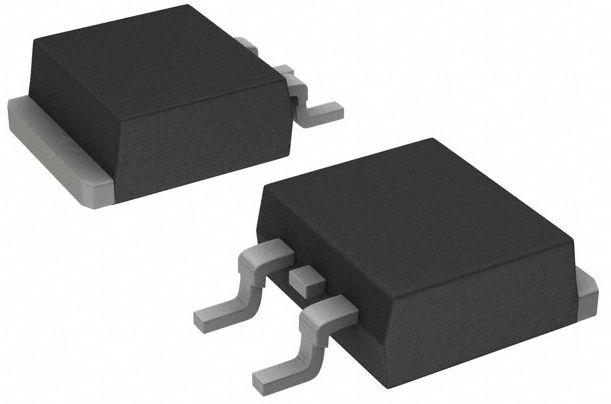

ON SEMICONDUCTOR MC7808ABD2TR4G 线性稳压器, 固定, 7808, 35V输入, 8V和1A输出, TO-263-3
The is a monolithic Positive Voltage Regulator with 8V nominal voltage. It is designed as fixed-voltage regulator for a wide variety of applications including local, on-card regulation. This regulator employs internal current limiting, thermal shutdown and safe-area compensation. With adequate heat-sinking it can deliver output currents in excess of 1A. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
- .
- No external components required
无卤素状态 Halogen Free
输出接口数 1
输出电压 8 V
输出电流 1 A
针脚数 3
极性 P-Channel
静态电流 3.3 mA
跌落电压 2V @1A
输入电压Max 35 V
输入电压Min 10 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±4 %
输入电压 ≤35 V
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
封装 TO-263-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Automotive, 工业, Industrial, 车用, 电源管理
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC7808ABD2TR4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC7808ABD2TG 安森美 | 类似代替 | MC7808ABD2TR4G和MC7808ABD2TG的区别 |
MC7808ABD2T 安森美 | 类似代替 | MC7808ABD2TR4G和MC7808ABD2T的区别 |
MC7808ABD2TR4 安森美 | 类似代替 | MC7808ABD2TR4G和MC7808ABD2TR4的区别 |
