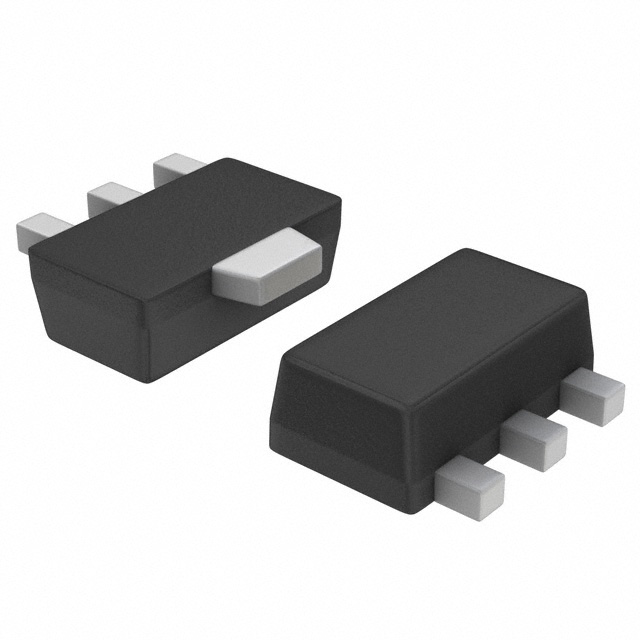

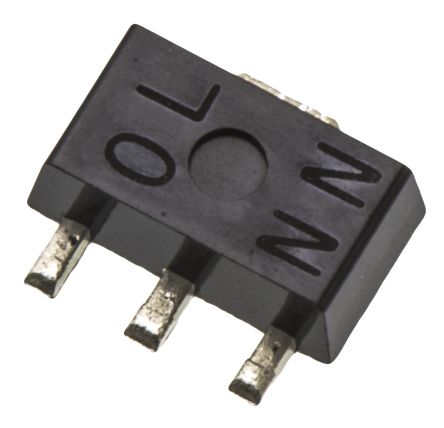

MC78FC40HT1G

LDO（低压降）线性稳压器，ON Semiconductor，最高可达 120mA### LDO（低压降）线性稳压器，ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

低压降 LDO 线性电压调节器，高达 120mA，

得捷:
IC REG LDO 4V 65MA SOT89-3

欧时:
### LDO（低压降）线性稳压器，ON Semiconductor，最高可达 120mA### LDO（低压降）线性稳压器，ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

贸泽:
LDO Voltage Regulators 4.0V 120mA Low Iq

艾睿:
Say goodbye to unstable voltages with this LDO MC78FC40HT1G linear regulator from ON Semiconductor. It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.5@40mA V. This device has a maximum power dissipation of 300 mW. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. By working with a maximum input voltage of 10 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 4 V, this is power management at its best. Using a load regulation of 80mV and line regulation of 0.1mVTyp is needed for a programmable DC power supply. Its maximum power dissipation is 300 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -30 °C to 80 °C. The maximum dropout voltage is 0.7@40mA V. Its polarity is positive.

Allied Electronics:
MC78FC40HT1G, LDO Voltage Regulator, 100mA, 4 V +/-2.5%, 2to10 Vin, 3-Pin SOT-89

安富利:
LDO Regulator Pos 4V 0.1A 4-Pin3+Tab SOT-89 T/R

富昌:
MC78FC00 系列 10 V 120 mA 表面贴装 微功耗 稳压器 -SOT-89-3

Chip1Stop:
LDO Regulator Pos 4V 0.1A 4-Pin3+Tab SOT-89 T/R

Verical:
LDO Regulator Pos 4V 0.1A 4-Pin3+Tab SOT-89 T/R
