300mA,低压差稳压器,带开/关控制

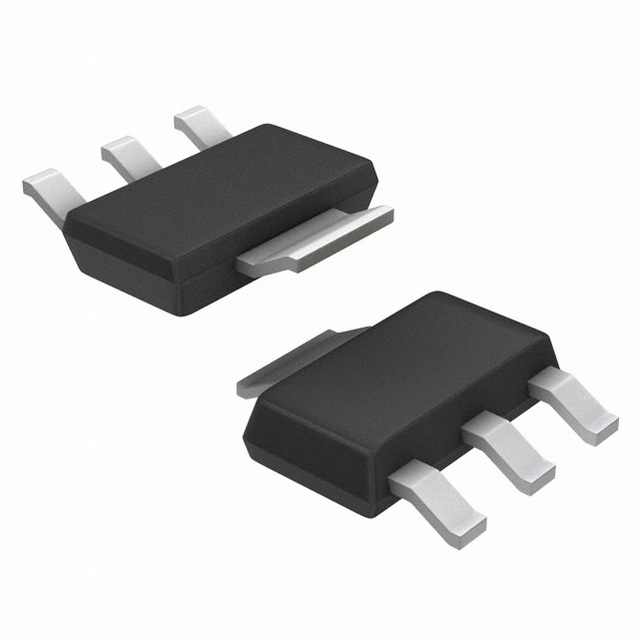

PMIC - 稳压器 - 线性 正 固定 输出 300mA SOT-223(TO-261)
立创商城:
MC33275ST-2.5T3G
得捷:
IC REG LINEAR 2.5V 300MA SOT223
贸泽:
LDO Voltage Regulators 2.5V 300mA
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO MC33275ST-2.5T3G linear regulator from ON Semiconductor. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.025@10mA|0.115@100mA|0.22@250mA|0.26@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3 A. This will operate at a maximum voltage of 13 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 25mV and line regulation of 10mV. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.1@10mA|0.2@100mA|0.4@250mA|0.5@300mA V.
安富利:
LDO Regulator Pos 2.5V 0.3A 4-Pin3+Tab SOT-223 T/R
Newark:
# ON SEMICONDUCTOR MC33275ST-2.5T3G Fixed LDO Voltage Regulator, 3.5V to 13V, 260mV Dropout, 2.5Vout, 300mAout, SOT-223-4
力源芯城:
300mA,低压差稳压器,带开/关控制
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 300mA SOT-223
额定电流 300 mA
无卤素状态 Halogen Free
输出接口数 1
输入电压DC 13.0V max
输出电压 2.5 V
输出电流 300 mA
极性 P-Channel
静态电流 1.1 mA
跌落电压 260 mV
输入电压Max 13 V
输入电压Min 3.5 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤13 V
安装方式 Surface Mount
引脚数 4

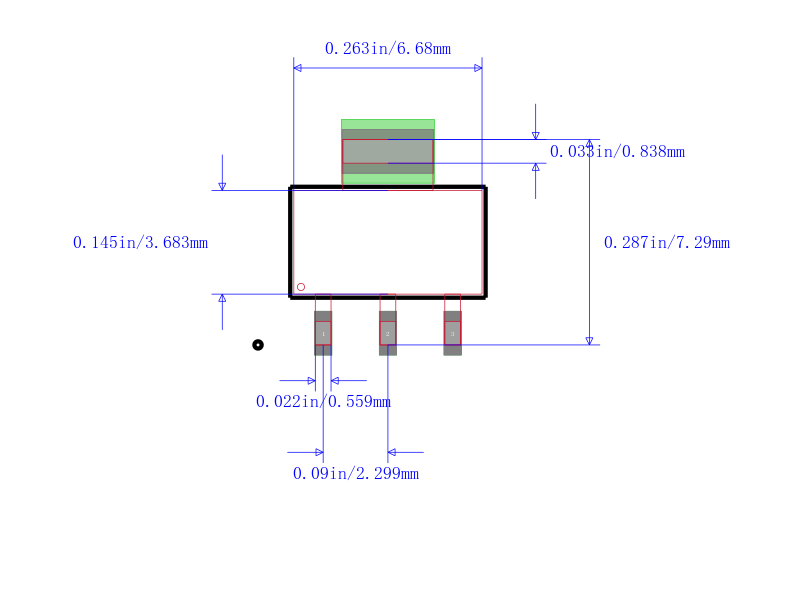

封装 TO-261-4
长度 6.5 mm
宽度 3.5 mm
高度 1.57 mm
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC33275ST-2.5T3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC33275ST-2.5T3 安森美 | 类似代替 | MC33275ST-2.5T3G和MC33275ST-2.5T3的区别 |
