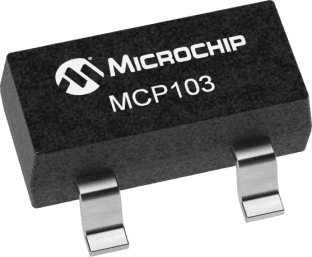

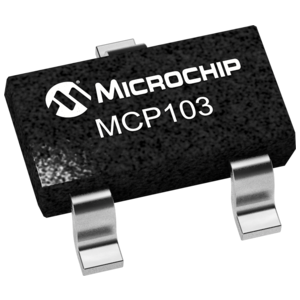

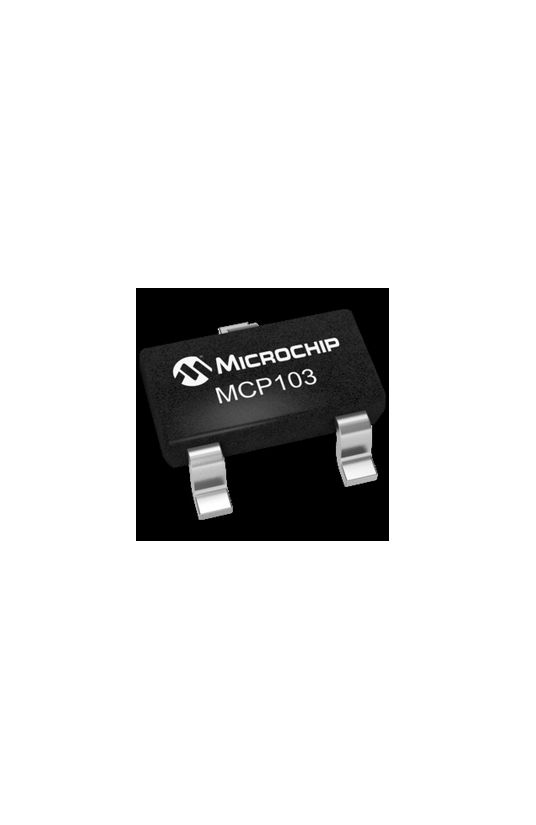

MCP103系列 4.38V 80 ms 微功耗 电压监控器-SOT-23
Thanks to Technology, your circuit can return to normal functionality in case of processor failure with the microprocessor supervisory circuit. It has a typical reset threshold voltage of 4.38 V, with a minimum of 4.314 V and a maximum of 4.446 V. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 1.00V min
输出电流 10 mA
针脚数 3
静态电流 1.00 µA
阈值电压 4.38 V
复位电压Min 4.314 V
复位电压Max 4.446 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 5.5 V
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 0.95 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
