500MA 低压 LDO线性稳压器

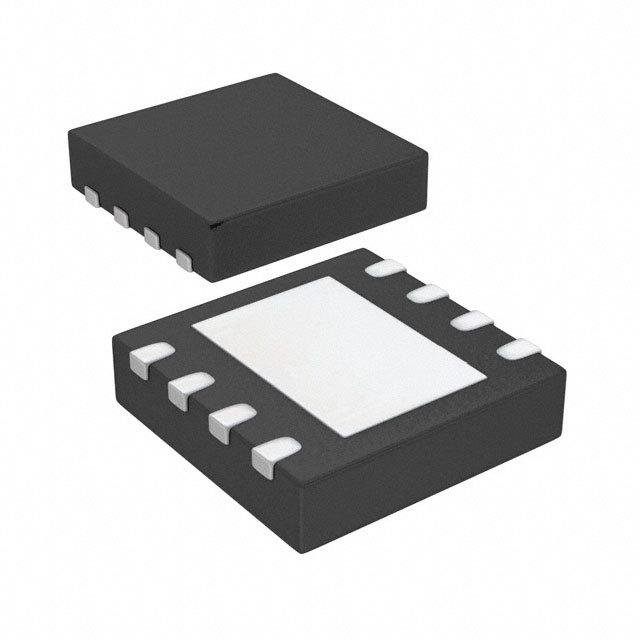

Linear Voltage Regulator IC 1 Output 500mA 8-DFN 2x3
得捷:
IC REG LINEAR 1.2V 500MA 8DFN
立创商城:
MCP1725T-1202E/MC
艾睿:
Having trouble maintaining a steady voltage? This LDO MCP1725T-1202E/MC linear regulator from Microchip Technology will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.21@500mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.5Min A. Use this part at voltages between 2.3 V and 6 V. With a fixed output that has a voltage of 1.2 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.5%Typ and line regulation of 0.05%/VTyp. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. The maximum dropout voltage is 0.35@500mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Allied Electronics:

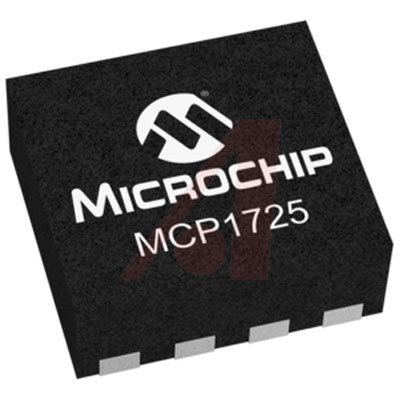

500mA CMOS LDO, Vout=1.2V, Extended Temp Range
Verical:
LDO Regulator Pos 1.2V 0.5A Automotive 8-Pin DFN EP T/R
儒卓力:
**LDO.VREG POS 1,2V 0,5A DFN8 **
输出接口数 1
输入电压DC 2.30V min
输出电压 1.2 V
输出电流 500 mA
静态电流 120 µA
输出电容类型 Ceramic
跌落电压 210 mV
输入电压Max 6 V
输入电压Min 2.3 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.3V ~ 6V
安装方式 Surface Mount
引脚数 8
封装 DFN-8
封装 DFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1725T-1202E/MC Microchip 微芯 | 当前型号 | 当前型号 |
MCP1725-1202E/MC 微芯 | 完全替代 | MCP1725T-1202E/MC和MCP1725-1202E/MC的区别 |
