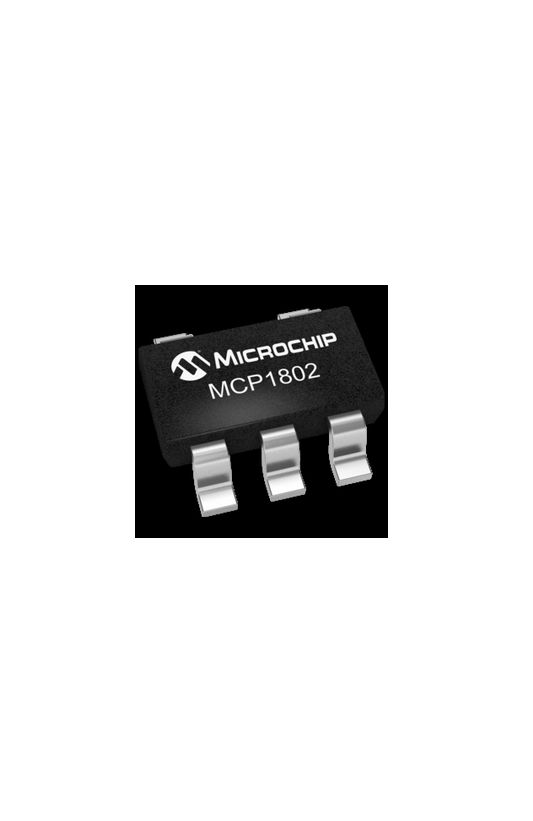

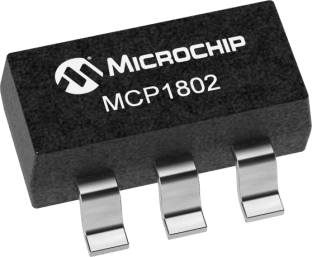

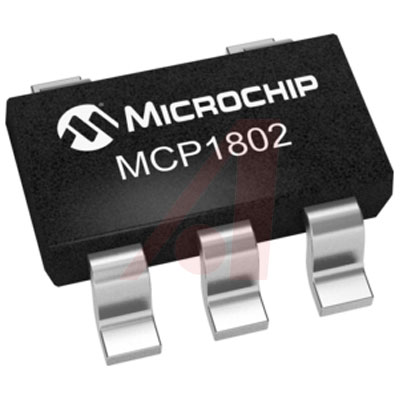

MCP1802T-0902I/OT

300毫安，高PSRR ，低静态电流LDO 300 mA, High PSRR, Low Quiescent Current LDO

PMIC - 稳压器 - 线性 正 固定 输出 260mA SOT-23-5

得捷:
IC REG LINEAR 0.9V 260MA SOT23-5

立创商城:
MCP1802T-0902I/OT

贸泽:
LDO Voltage Regulators Hi PSRR 300 mA LDO Vin 10V maxVout 0.9V

艾睿:
Control the voltage level of your circuit with this LDO MCP1802T-0902I/OT linear regulator from Microchip Technology. This device has a maximum power dissipation of 250 mW. Its typical dropout voltage at current is 0.06@30mA|0.2@100mA|0.08@30mA|0.24@100mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.3Min A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2 V that does not exceed 10 V. With a fixed output that has a voltage of 0.9 V, this is power management at its best. At a load regulation of 100mV and line regulation of 0.2%/V a constant current can be produced at the output of your circuit. Its maximum power dissipation is 250 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. The maximum dropout voltage is 0.09@30mA|0.25@100mA|0.12@30mA|0.35@100mA V. This voltage regulation device has an operating temperature range of -40 °C to 85 °C.

Allied Electronics:
High PSRR 300 mA LDO, Vin 10V max, Vout=0.9V

安富利:
LDO Regulator Pos 0.9V 0.3A 5-Pin SOT-23 T/R
