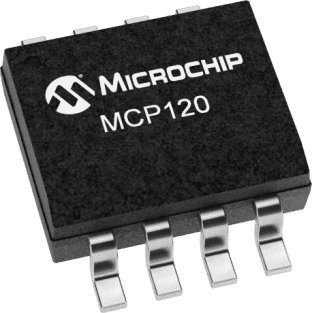

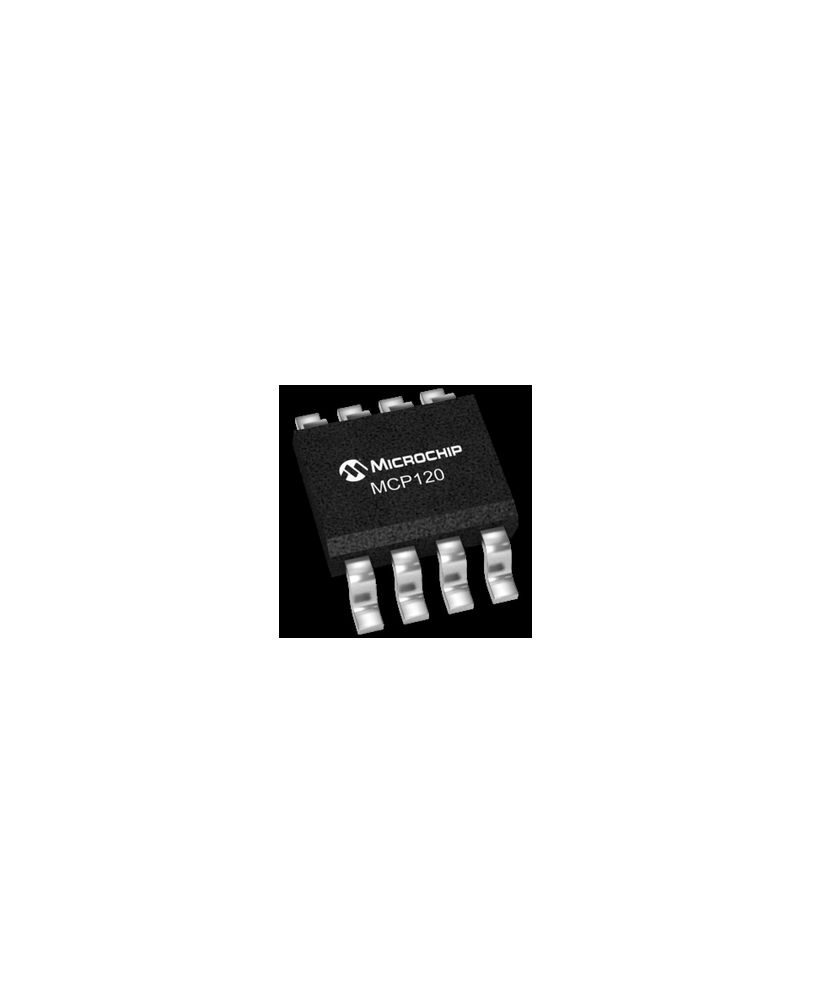

MCP120系列 4.75V 150 ms 微控制器 监控电路-SOIC-8
Using this microprocessor supervisory circuit, developed by Technology, easily have another processor take control in case the original fails. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.625 V, with a minimum of 4.5 V and a maximum of 4.75 V. This part has an operating temperature range of -40 °C to 85 °C.
电源电压DC 1.00V min
静态电流 45.0 µA
阈值电压 4.625 V
复位电压Min 4.5 V
复位电压Max 4.75 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.25 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCP120T-475I/SN Microchip 微芯 | 当前型号 | 当前型号 |
MCP120-475I/SN 微芯 | 类似代替 | MCP120T-475I/SN和MCP120-475I/SN的区别 |
