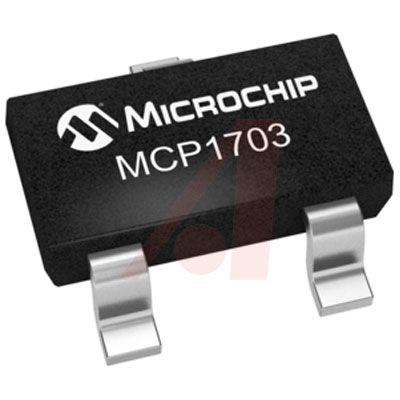

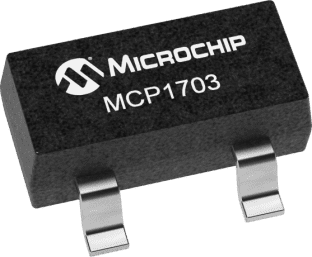

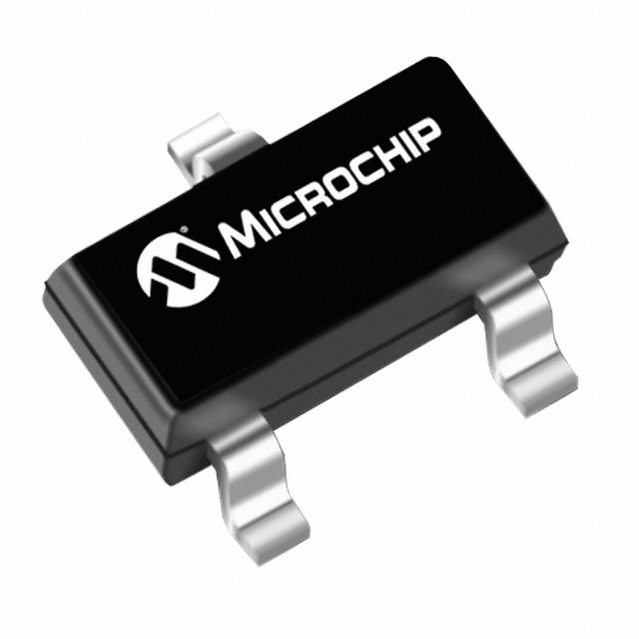

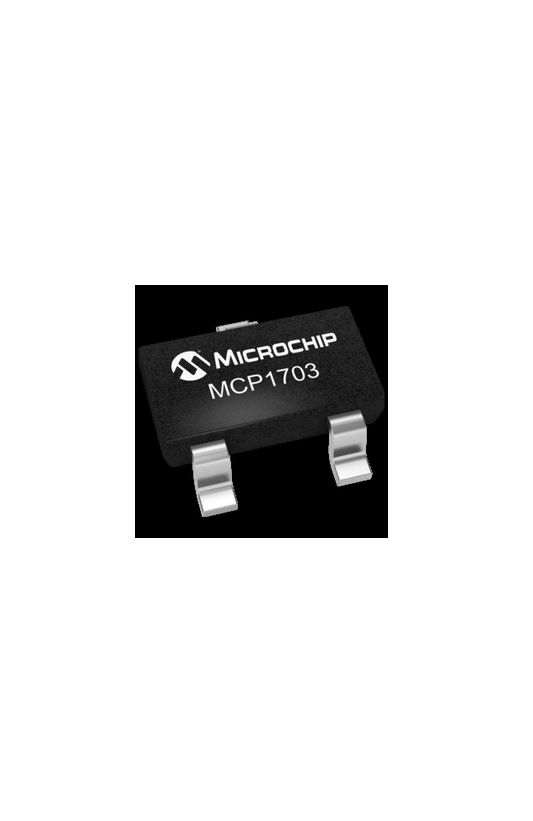

MCP1703 低压降电压稳压器### LDO(低压降)线性稳压器,Microchip
MCP1703 低压降电压稳压器
### LDO(低压降)线性稳压器,
得捷:
IC REG LIN 2.8V 250MA SOT23A-3
立创商城:
MCP1703T-2802E/CB
欧时:
Microchip MCP1703T-2802E/CB LDO 稳压器, 2.8 V输出, 250mA最大输出, ±0.4%精确度, 2.7 → 16 V输入
e络盟:
固定LDO稳压器, 2.7V至16V, 750mV压降, 2.8V/250mA输出, SOT-23A-3
艾睿:
Control the voltage level of your circuit with this LDO MCP1703T-2802E/CB linear regulator from Microchip Technology. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.625@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.25Min A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 16 V. With a fixed output that has a voltage of 2.8 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 1%Typ and line regulation of 0.1%/VTyp. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.975@250mA V.
Allied Electronics:
LOW IQ 250MA LDO, VIN 16V MAX, VOUT =2.8V, 3 SOT-23A 2X3MM T/R
安富利:
LDO Regulator Pos 2.8V 0.25A 3-Pin SOT-23A T/R
Verical:
LDO Regulator Pos 2.8V 0.25A 3-Pin SOT-23A T/R
DeviceMart:
IC REG LDO 2.8V .25A SOT23A-3
输出接口数 1
输入电压DC 2.70V min
输出电压 2.8 V
输出电流 ≥250 mA
供电电流 5 μA
针脚数 3
静态电流 0.005 mA
输出电容类型 Ceramic
跌落电压 0.625V @250mA
输入电压Max 16 V
输入电压Min 2.7 V
输出电压Min 2.8 V
输出电流Max 250 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1703T-2802E/CB Microchip 微芯 | 当前型号 | 当前型号 |
MCP1703AT-2802E/CB 微芯 | 完全替代 | MCP1703T-2802E/CB和MCP1703AT-2802E/CB的区别 |
MCP1703T-2802E/DB 微芯 | 类似代替 | MCP1703T-2802E/CB和MCP1703T-2802E/DB的区别 |
