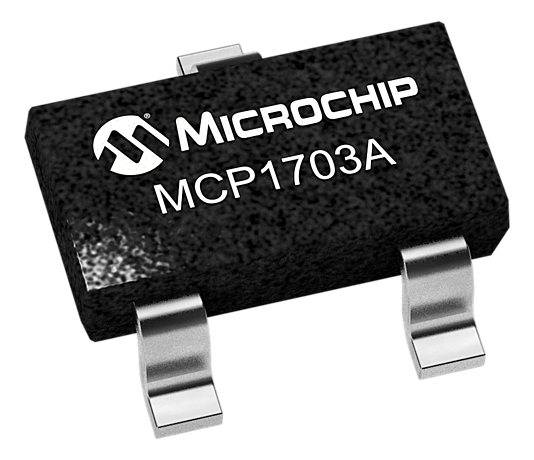

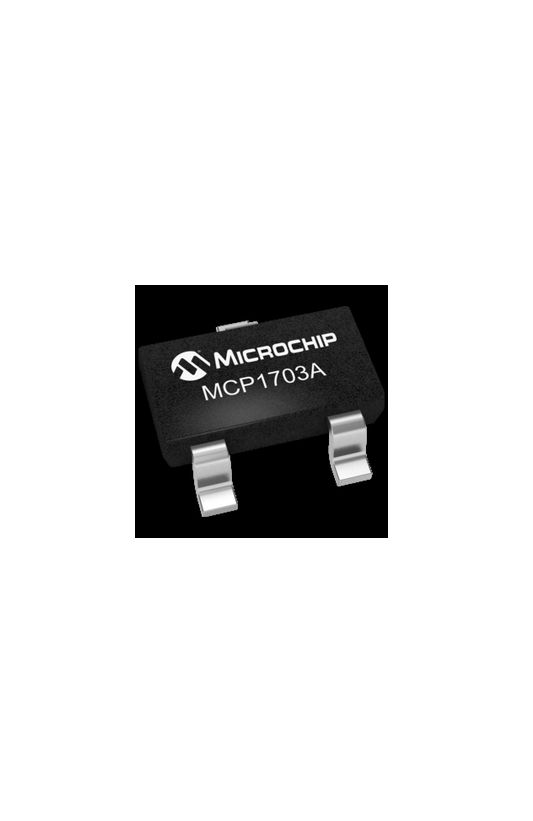

MCP1703A 系列 3 V 250 mA 低静态电流 LDO 稳压器 - SOT-23A-3
PMIC - 稳压器 - 线性 正 固定 1 输出 250mA SOT-23A-3
得捷:
IC REG LINEAR 3V 250MA SOT23A-3
立创商城:
MCP1703AT-3002E/CB
艾睿:
Control the voltage level of your circuit with this LDO MCP1703AT-3002E/CB linear regulator from Microchip Technology. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.625@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.25Min A. Using the part will provide the power your application needs by requiring a voltage only of 2.7 V and not exceeding a voltage of 16 V. With a fixed output that has a voltage of 3 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 1%Typ and line regulation of 0.1%/VTyp. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The maximum dropout voltage is 0.975@250mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
Allied Electronics:
IC REG LDO 3V 0.25A SOT23A-3
安富利:
LDO Regulator Pos 3V 0.25A 3-Pin SOT-23A T/R
Chip1Stop:
LDO Regulator Pos 3V 0.25A 3-Pin SOT-23A T/R
输出接口数 1
输入电压DC 2.70V min
输出电压 3 V
输出电流 250 mA
静态电流 2.00 µA
输出电容类型 Ceramic
跌落电压 0.625V @250mA
输入电压Max 16 V
输入电压Min 2.7 V
输出电压Min 3 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 3

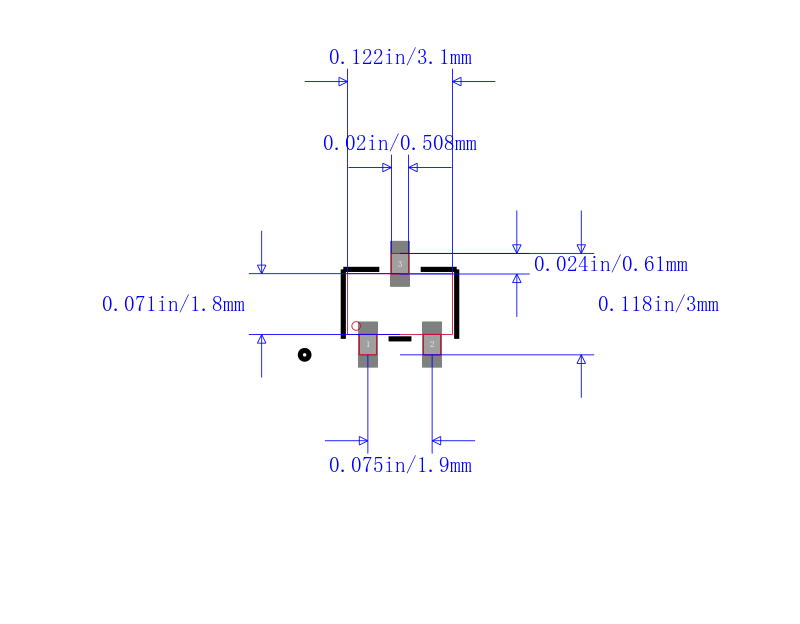

封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1703AT-3002E/CB Microchip 微芯 | 当前型号 | 当前型号 |
MCP1703T-3002E/CB 微芯 | 完全替代 | MCP1703AT-3002E/CB和MCP1703T-3002E/CB的区别 |
MCP1703T-3002E/DB 微芯 | 完全替代 | MCP1703AT-3002E/CB和MCP1703T-3002E/DB的区别 |
MCP1703T-3002E/MB 微芯 | 类似代替 | MCP1703AT-3002E/CB和MCP1703T-3002E/MB的区别 |
