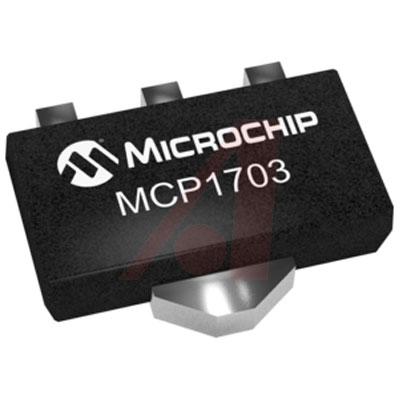

MCP1703T-4002E/MB

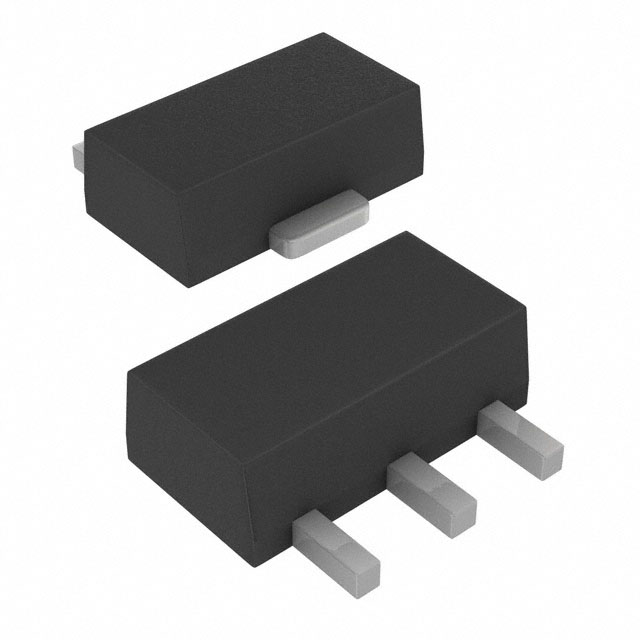

MCP1703系列 250mA 4.0V 低静态电流 LDO稳压器-SOT-89-3

Description

The MCP1703 is a family of CMOS low dropout LDO voltage regulators that can deliver up to 250 mA of current while consuming only 2.0 µA of quiescent current typical. The input operating range is specified from 2.7V to 16.0V, making it an ideal choice for two to six primary cell battery-powered applications, 9V alkaline and one or two cell Li-Ion-powered applications.

Features

• 2.0 µA Typical Quiescent Current

• Input Operating Voltage Range: 2.7V to16.0V

• 250 mA Output Current for Output Voltages ≥2.5V

• 200 mA Output Current for Output Voltages < 2.5V

• Low Drop Out Voltage, 625 mV typical @ 250 mA for VR= 2.8V

• 0.4% Typical Output Voltage Tolerance

• Standard Output Voltage Options:

  - 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.0V, 5.0V

• Output voltage range: 1.2V to 5.5V in 0.1V increments 50 mV increments available upon request

• Stable with 1.0 µF to 22 µF ceramic output capacitance

• Short-Circuit Protection

• Overtemperature Protection

Applications

• Battery-powered Devices

• Battery-powered Alarm Circuits

• Smoke Detectors

• CO2 Detectors

• Pagers and Cellular Phones

• Smart Battery Packs

• Low Quiescent Current Voltage Reference

• PDAs

• Digital Cameras

• Microcontroller Power

• Solar-Powered Instruments

• Consumer Products

• Battery Powered Data Loggers
