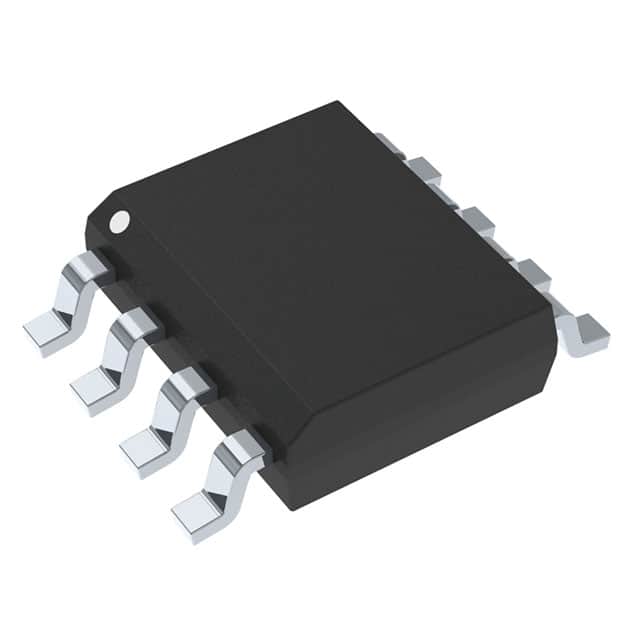

ON SEMICONDUCTOR MC34161DR2G Universal Voltage Monitor, 2V-40Vsupp., SOIC-8 新
This voltage monitor voltage monitor IC from protects your sensitive components from hazardous conditions. This device has a maximum power dissipation of 450 mW. Its maximum power dissipation is 450 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a minimum operating supply voltage of 2 V and a maximum of 40 V. This voltage supervisor IC has an operating temperature range of 0 °C to 70 °C. It has a typical reset threshold voltage of 1.27 V, with a minimum of 1.245 V and a maximum of 1.295 V.
电源电压DC 2.00V min
无卤素状态 Halogen Free
输出电压 2.6V ~ 2.48V
供电电流 0.9 mA
针脚数 8
耗散功率 450 mW
阈值电压 1.27 V
复位电压Min 1.245 V
复位电压Max 1.295 V
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 450 mW
电源电压Max 40 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8

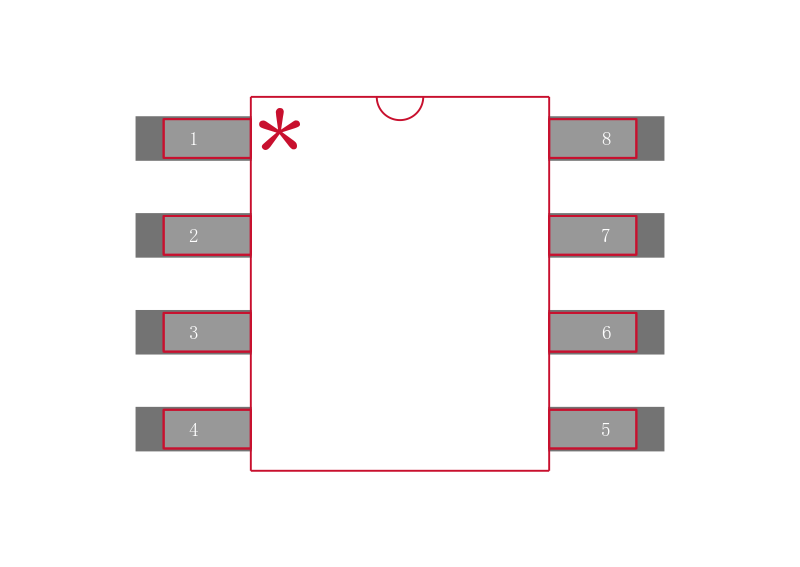

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Braking, Instrument Cluster, Body Electronic, Infotainment, Occupant Comfort, Powertrain, Nagivator, Occupant Protection
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC34161DR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC34161DG 安森美 | 完全替代 | MC34161DR2G和MC34161DG的区别 |
MC34161DR2 安森美 | 类似代替 | MC34161DR2G和MC34161DR2的区别 |
MC34161D 安森美 | 类似代替 | MC34161DR2G和MC34161D的区别 |
