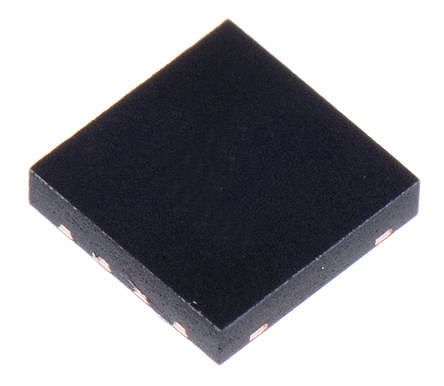

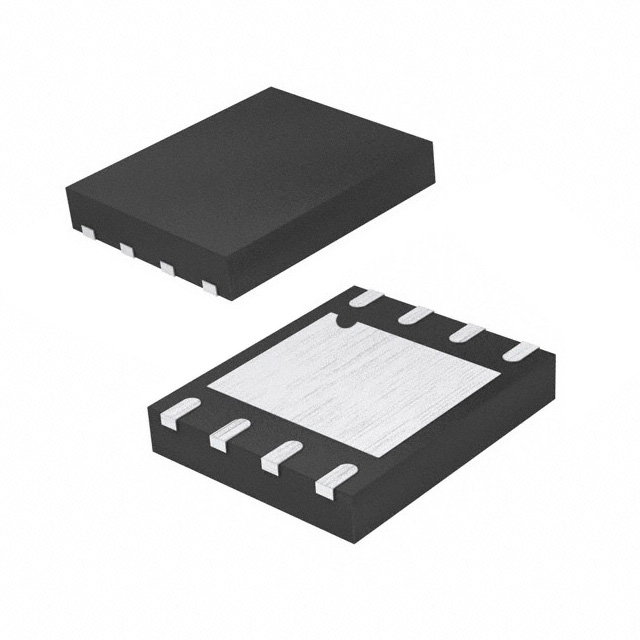

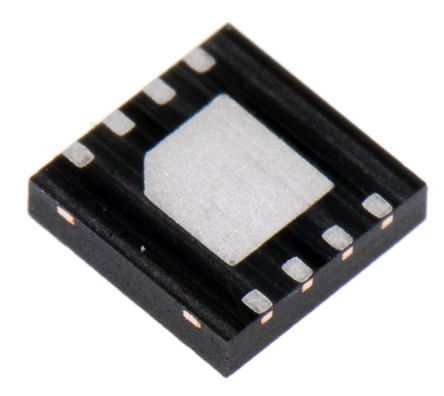

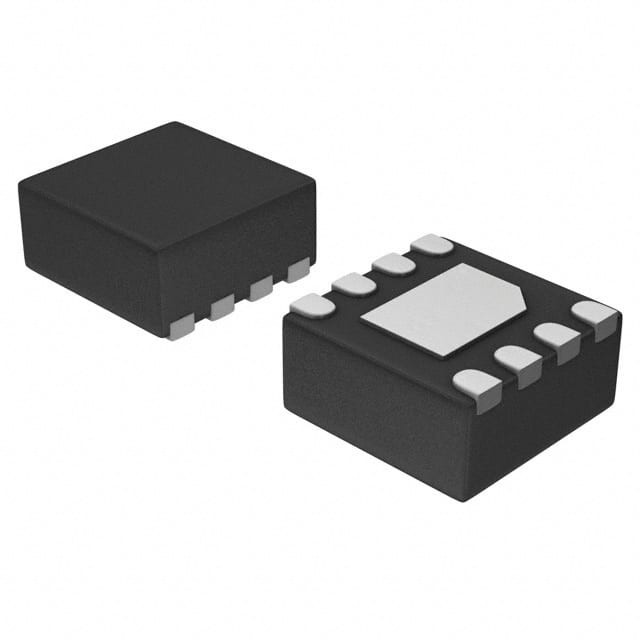

MC33275MN-3.3R2G

LDO（低压降）线性稳压器，On Semiconductor，250mA 至 300mA### LDO（低压降）线性稳压器，ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

低压降 LDO 线性电压调节器，250mA 至 300mA，

### LDO（低压降）线性稳压器，ON Semiconductor

低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR 3.3V 300MA 8DFN

立创商城:
MC33275MN-3.3R2G

欧时:
### LDO（低压降）线性稳压器，On Semiconductor，250mA 至 300mA### LDO（低压降）线性稳压器，ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

贸泽:
LDO Voltage Regulators 300mA 3.3V LDO

艾睿:
Control the voltage level of your circuit with this LDO MC33275MN-3.3R2G linear regulator from ON Semiconductor. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.025@10mA|0.115@100mA|0.22@250mA|0.26@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3 A. It only needs a voltage that does not exceed 13 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 25mV and line regulation of 10mV. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 0.1@10mA|0.2@100mA|0.4@250mA|0.5@300mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.

Allied Electronics:
MC33275MN-3.3R2G, LDO Voltage Regulator, 300mA, 3.3V, Maximum of 13 Vin, 8-Pin DFN

安富利:
LDO Regulator Pos 3.3V 0.3A 8-Pin DFN EP T/R

Verical:
LDO Regulator Pos 3.3V 0.3A 8-Pin DFN EP T/R

力源芯城:
300mA,低压差稳压器
