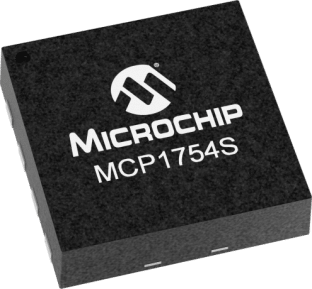

LDO Regulator Pos 5V 0.15A 8Pin DFN EP T/R
PMIC - 稳压器 - 线性 正 固定 输出 150mA 8-DFN(2x3)
得捷:
IC REG LINEAR 5V 150MA 8DFN
立创商城:
MCP1754ST-5002E/MC
贸泽:
LDO Voltage Regulators LDO
艾睿:
Use the LDO MCP1754ST-5002E/MC linear regulator from Microchip Technology to maintain a constant output voltage. Its typical dropout voltage at current is 0.3@150mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. The best way to provide power to your application is by using this, which needs a voltage of at least 3.6 V and no higher than 16 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Users like the load regulation of -0.4%Typ and line regulation of 0.01%/VTyp. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 150 °C. The maximum dropout voltage is 0.5@150mA V. Its polarity is positive.
Allied Electronics:
IC REG LDO 5V 0.15A 8DFN
安富利:
LDO Regulator Pos 5V 0.15A 8-Pin DFN EP T/R
输出接口数 1
输入电压DC 3.60V min
输出电压 5 V
输出电流 150 mA
静态电流 56.0 µA
输出电容类型 Ceramic
跌落电压 300 mV
输入电压Max 16 V
输入电压Min 3.6 V
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±2 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 8
封装 DFN-8
长度 3 mm
宽度 2 mm
高度 0.9 mm
封装 DFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1754ST-5002E/MC Microchip 微芯 | 当前型号 | 当前型号 |
MCP1754ST-5002E/CB 微芯 | 功能相似 | MCP1754ST-5002E/MC和MCP1754ST-5002E/CB的区别 |
MCP1754ST-5002E/MB 微芯 | 功能相似 | MCP1754ST-5002E/MC和MCP1754ST-5002E/MB的区别 |
MCP1754ST-5002E/DB 微芯 | 功能相似 | MCP1754ST-5002E/MC和MCP1754ST-5002E/DB的区别 |
