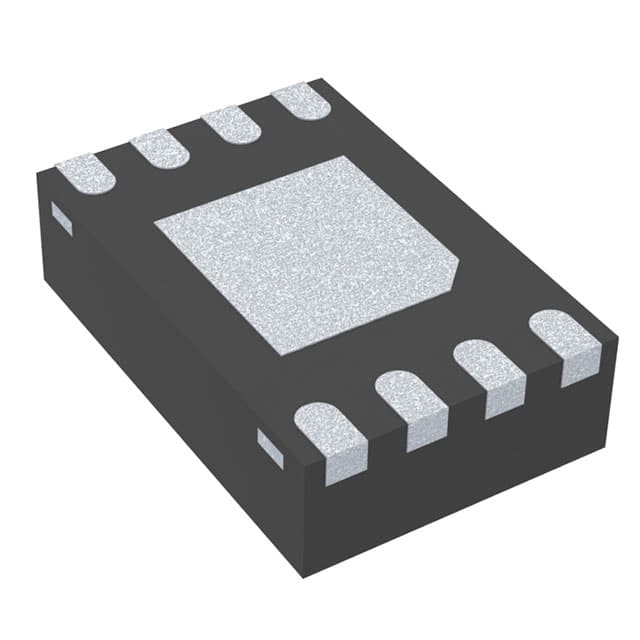

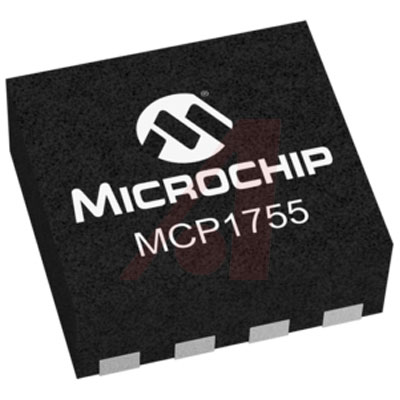

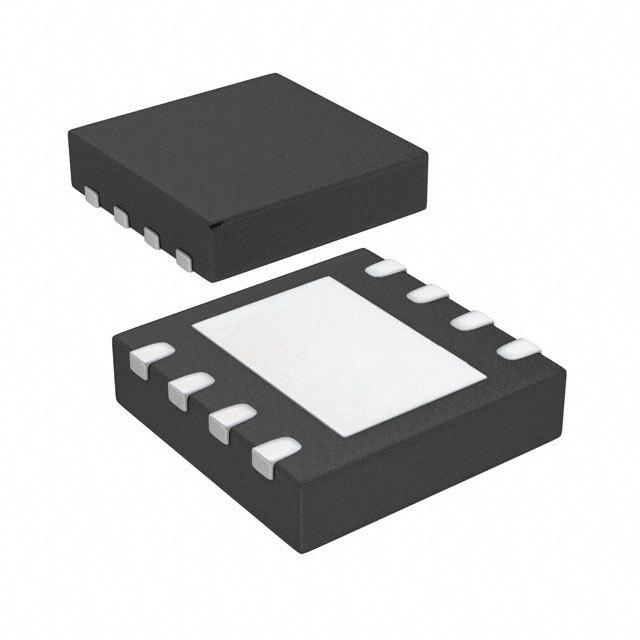

LDO Regulator Pos 3.3V 0.3A 8Pin DFN EP Tube
Stable power is ideal for better processing this LDO linear regulator developed by Technology will help do so. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.3@300mA V. This voltage regulation device"s single output can produce a current up to 0.3 A. It only needs a voltage of at least 3.6 V while not exceeding 16 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. By operating at a load regulation of 0.1%Typ and line regulation of 0.01%/VTyp you can provide a constant voltage at your output. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.5@300mA V.
输出接口数 1
输入电压DC 3.60V min
输出电压 3.3 V
输出电流 300 mA
静态电流 68.0 µA
输出电容类型 Ceramic
跌落电压 0.3V @300mA
输入电压Max 16 V
输入电压Min 3.6 V
输出电压Min 3.3 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
安装方式 Surface Mount
引脚数 8
封装 DFN-8
封装 DFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
