MIC2025-1YM概述

MIC2025 系列 5.5 V 140 mOhm 单通道 配电开关 MM8

The is a single-channel power Distribution Switch optimized for general-purpose power distribution requiring circuit protection. The switch is internally current limited and have thermal shutdown that protects the device and load. The device employs soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed. A fault status output flag is provided that is asserted during over-current and thermal shutdown conditions.

.
140mR Maximum on-resistance
.
Short-circuit protection with thermal shutdown
.
Fault status flag with 3ms filter eliminates false assertions
.
Under-voltage lockout
.
Reverse current flow blocking
.
Circuit breaker mode reduces power consumption
.
Logic-compatible input
.
Soft-start circuit
.
Low quiescent current
MIC2025-1YM中文资料参数规格
技术参数

输出接口数 1

输入电压DC 5.50 V

针脚数 8

上升时间 2300 µs

输入电压Max 5.5 V

输入电压Min 2.7 V

输出电流Max 500 mA

下降时间 50 µs

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压Max 5.5 V

电源电压Min 2.7 V

输入电压 2.7V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

封装 SOIC-8

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Unknown

包装方式 Tube

制造应用 便携式器材, 通信与网络, 电源管理, 计算机和计算机周边

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2014/06/16

海关信息

ECCN代码 EAR99

数据手册

MIC2025-1YM引脚图与封装图

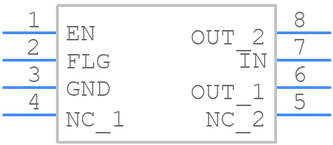

MIC2025-1YM引脚图
MIC2025-1YM封装焊盘图
在线购买MIC2025-1YM
型号: MIC2025-1YM
制造商: Microchip 微芯
描述:MIC2025 系列 5.5 V 140 mOhm 单通道 配电开关 MM8
替代型号MIC2025-1YM
型号/品牌 代替类型 替代型号对比

MIC2025-1YM

Microchip 微芯

当前型号

当前型号

MIC2075-1YM

微芯

完全替代

MIC2025-1YM和MIC2075-1YM的区别

MIC2025-2YM

微芯

类似代替

MIC2025-1YM和MIC2025-2YM的区别

MIC2075-2YM

微芯

类似代替

MIC2025-1YM和MIC2075-2YM的区别
