MAX3202EETT+T

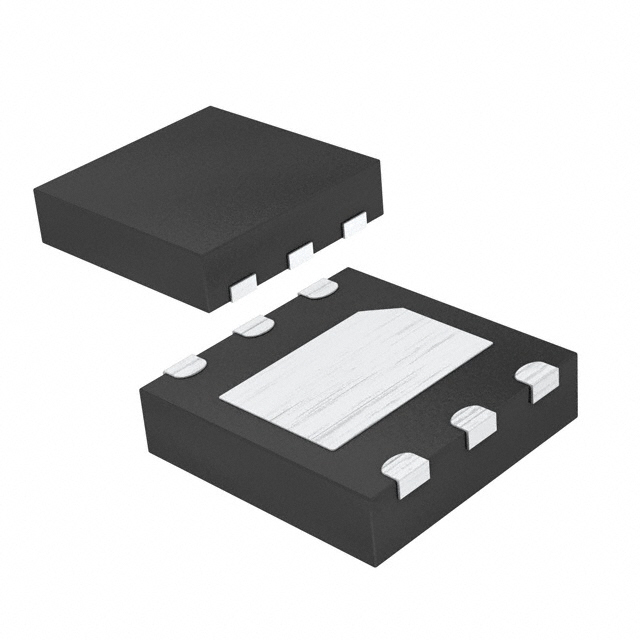

MAXIM INTEGRATED PRODUCTS  MAX3202EETT+T  静电保护装置, TDFN, 6 引脚, 5.5 V, 1.951 W

The is a low capacitance, 2-channel, ±15KV ESD protected diode array for high speed data interfaces in 6 pin TDFN package. It is designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steer ESD current pulses to VCC or GND. The device protects against ESD pulses up to ±15KV human body model, ±8KV contact discharge and ±15KV air gap discharge as specified in IEC 61000-4-2. The MAX3202E has 5pF capacitance per channel which makes it ideal for use on high speed data I/O interfaces. The MAX3202E is a two channel device intended for USB and USB 2.0 applications.

.

Supply voltage range from 0.9V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Low leakage current of 1nA

.

Low supply current of 1nA

.

Maximum diode forward voltage of 0.95V at IF = 10mA

.

Channel input capacitance of 5pF
