1.5A,升压/降压型DC/DC变换器
Adjust the voltage level of your devices with this inverting and step up|step down DC to DC converter from . This converter has single output. By only needing an input voltage of 3 V with a maximum of 40 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1.25 to 40 V, this is power management at its best. This device has a typical switch current of 1.5 A. This part offers a switching frequency of 24 to 42 kHz in order to work properly. This product comes in rail packaging to keep individual parts separated and protected. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 1.25V ~ 40V
输出电流 1.5 A
针脚数 8
开关频率 33 kHz
输入电压Max 40 V
输入电压Min 3 V
输出电压Max 40 V
输出电压Min 1.25 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3V ~ 40V
安装方式 Through Hole
引脚数 8

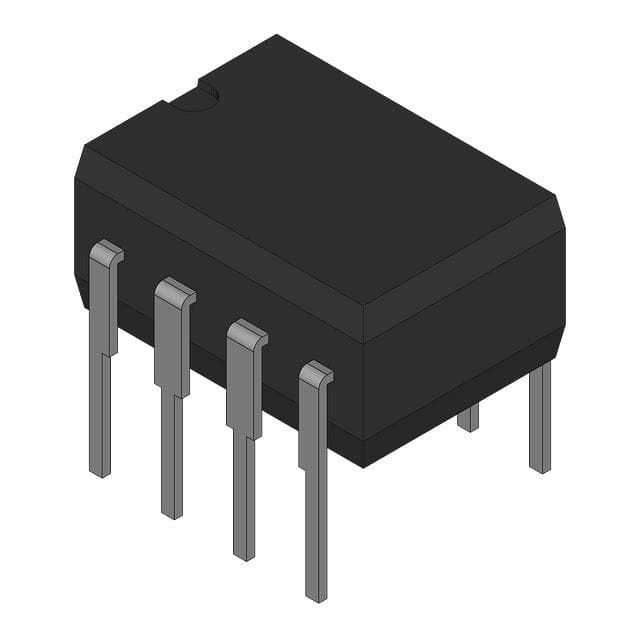

封装 PDIP-8
封装 PDIP-8
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC33063AVPG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC33063AVDR2G 安森美 | 完全替代 | MC33063AVPG和MC33063AVDR2G的区别 |
MC34063AP1G 安森美 | 类似代替 | MC33063AVPG和MC34063AP1G的区别 |
CS51414EDR8G 安森美 | 功能相似 | MC33063AVPG和CS51414EDR8G的区别 |
