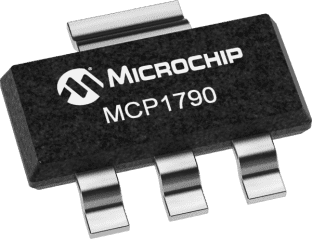

70mA,3.3V固定输出,低压差稳压器
This LDO linear regulator from Technology gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.7@70mA V. It has an overall accuracy of ±2.5 %. This voltage regulation device"s single output can produce a current up to 0.07Min A. This will operate at a minimum voltage of 6 V and a maximum voltage of 30 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. By operating at a load regulation of ±0.2%Typ and line regulation of ±0.0002%/VTyp you can provide a constant voltage at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 1.3@70mA V. Its polarity is positive.
输出接口数 1
输入电压DC 6.00V min
输出电压 3.3 V
输出电流 70 mA
静态电流 70.0 µA
输出电容类型 Ceramic
跌落电压 0.7V @70mA
输入电压Max 30 V
输入电压Min 6 V
输出电压Min 3.3 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 6V ~ 30V
安装方式 Surface Mount
引脚数 4

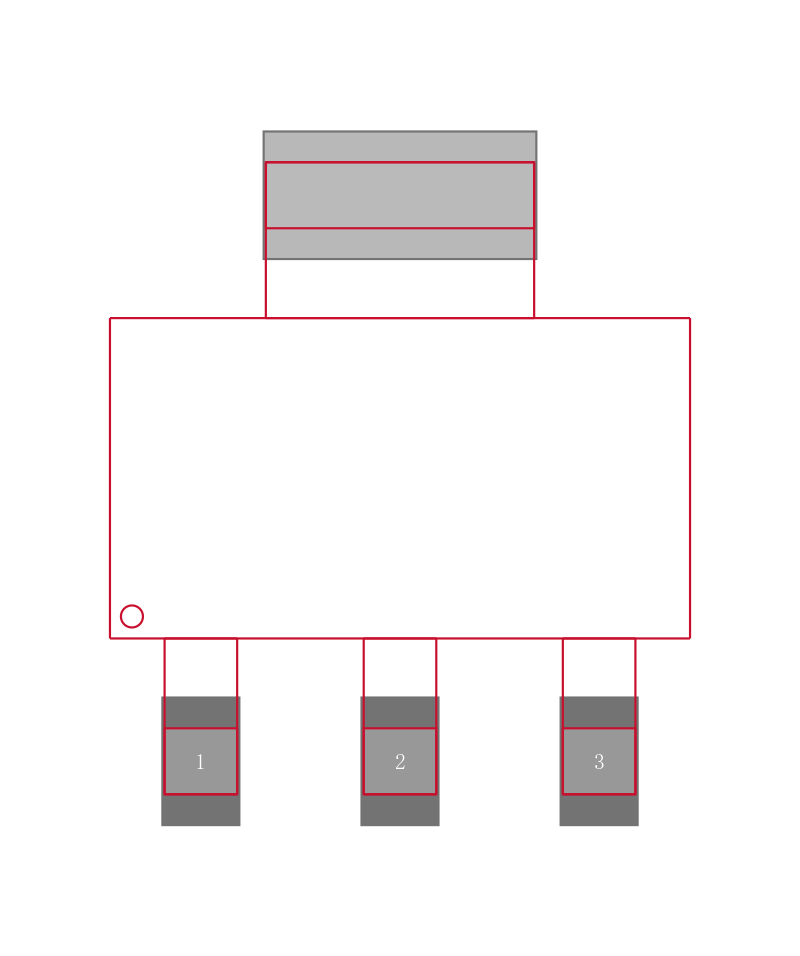

封装 TO-261-4
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1790T-3302E/DB Microchip 微芯 | 当前型号 | 当前型号 |
MCP1790-3302E/EB 微芯 | 完全替代 | MCP1790T-3302E/DB和MCP1790-3302E/EB的区别 |
MCP1791-3302E/ET 微芯 | 完全替代 | MCP1790T-3302E/DB和MCP1791-3302E/ET的区别 |
MCP1790T-3302E/EB 微芯 | 完全替代 | MCP1790T-3302E/DB和MCP1790T-3302E/EB的区别 |
