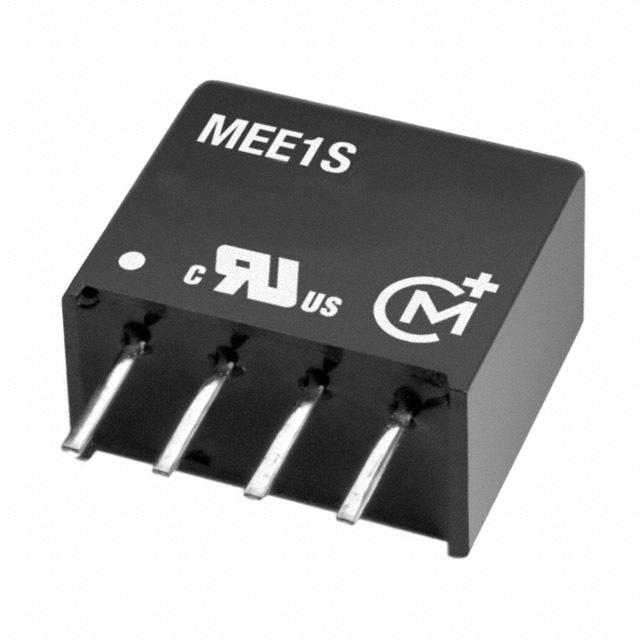

MURATA POWER SOLUTIONS MEE1S0509SC 直流/直流转换器 隔离式板载, 1kV隔离, SIP, 固定, 通孔安装, 1 W, 9 V, 111 mA
The MEE1 series isolated single-output PCB-mounting DC/DC Converter with free air convection cooling. The device is more efficient and offers improved regulation performance for applications where a wide output voltage variation cannot be tolerated. This is ideally suited for providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation to reduce switching noise.
- .
- Operation to zero load
- .
- 1kVDC Isolation hi pot test
- .
- Efficiency up to 87% typical
电源电压DC 5.00 V
额定功率 1 W
输出接口数 1
输入电压DC 5.00 V
输出电压 9 V
输出电流 0.111 A
输出功率 1 W
隔离电压 1 kV
输入电压Max 5.5 V
输入电压Min 4.5 V
输入电压DC Max 5.5 V
输入电压DC Min 4.5 v
输出电流Max 111 mA
输出功率Max 1 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 5.5V
安装方式 Through Hole
引脚数 4
封装 SIP-4
宽度 6 mm
高度 10 mm
封装 SIP-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, ITE（商业）, HVAC, Signal Processing, 信号处理, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MEE1S0509SC muRata 村田 | 当前型号 | 当前型号 |
NKE0509SC 村田 | 类似代替 | MEE1S0509SC和NKE0509SC的区别 |
IE0509S XP Power | 类似代替 | MEE1S0509SC和IE0509S的区别 |
