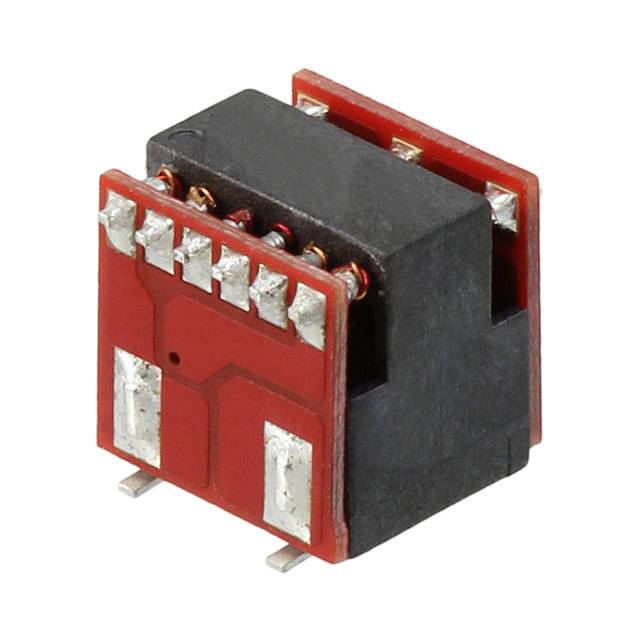

Module DC-DC 3.3Vin 1Out 5V 0.4A 2W 4Pin SMD Module
The TMR 3 series single/dual-output 3W isolated DC/DC Converter with regulated output, featuring wide 2:1 input voltage ranges. An excellent efficiency allows -40 to 85°C operation temperatures. Further features include remote ON/OFF control and continuous short-circuit protection. The compact dimensions of this converter make it an ideal solution for many space critical applications.
- .
- Fully regulated output voltage
- .
- Small footprint
- .
- High efficiency up to 85%
- .
- Models with 1500 and 3000VDC I/O isolation functional insulation
额定功率 2 W
输出接口数 1
输出电压 5 V
输出电流 0.4 A
输出功率 2 W
隔离电压 1 kV
输入电压Max 3.63 V
输入电压Min 2.97 V
输入电压DC Max 3.63 V
输入电压DC Min 2.97 v
输出电流Max 400 mA
输出功率Max 2 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.97V ~ 3.63V
安装方式 Surface Mount
引脚数 4
封装 SMD-6
宽度 8.2 mm
高度 8.5 mm
封装 SMD-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, Power Management, Sensing & Instrumentation, ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MTU2S0305MC muRata 村田 | 当前型号 | 当前型号 |
MTU2S0305MC-R 村田 | 完全替代 | MTU2S0305MC和MTU2S0305MC-R的区别 |
