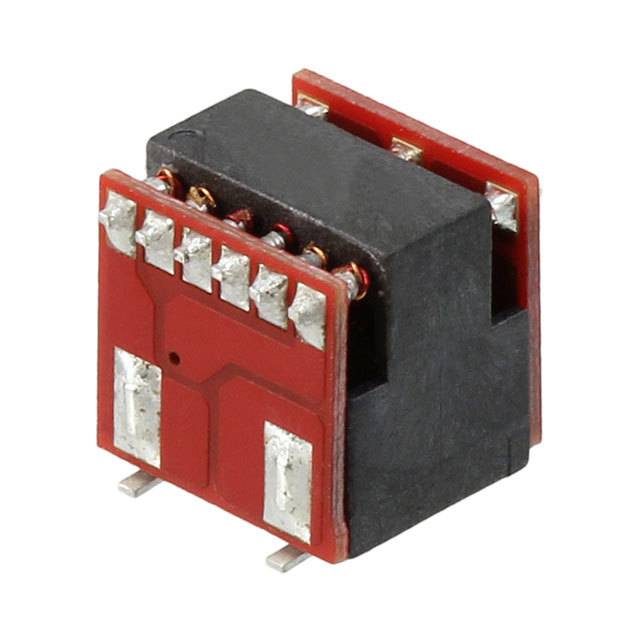

MTU2D0505MC

Module DC-DC 5Vin 2Out 5V/-5V 0.2A/-0.2A 2W 5Pin SMD Module

The is a 2-output 2W board-mount isolated DC/DC Converter with a footprint reduction of over 50% from the previous generations. The device is more efficient and offers improved regulation performance for applications where a wide output voltage variation cannot be tolerated. The device is pin compatible with the MTU2 series. The device is suitable for all applications where high volume production is envisaged.

.

Patent protected

.

Multi-layer ceramic capacitors

.

1kVDC Isolation hi pot test

.

Footprint over pins 0.69cm²

.

Power density 3.403W/cm³

.

13% Maximum load regulation

.

55mVp-p Maximum ripple and noise

.

82% Typical efficiency

.

19pF Isolation capacitance

.

200µs Start-up time
