MCP1701AT系列 250mA 4.6V 低压差 正向 稳压器-SOT-89-3
Stable voltages are always needed for sensitive systems implement this LDO linear regulator from Technology. It has an overall accuracy of ±2 %. This voltage regulation device has single output. It only needs a voltage that does not exceed 10 V to effectively power your circuit. With a fixed output that has a voltage of 4.6 V, this is power management at its best. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive.
容差 2 %
输出接口数 1
输出电压 4.6 V
输出电流 250 mA
耗散功率 500 mW
静态电流 4.5 µA
输入电压Max 10 V
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 3

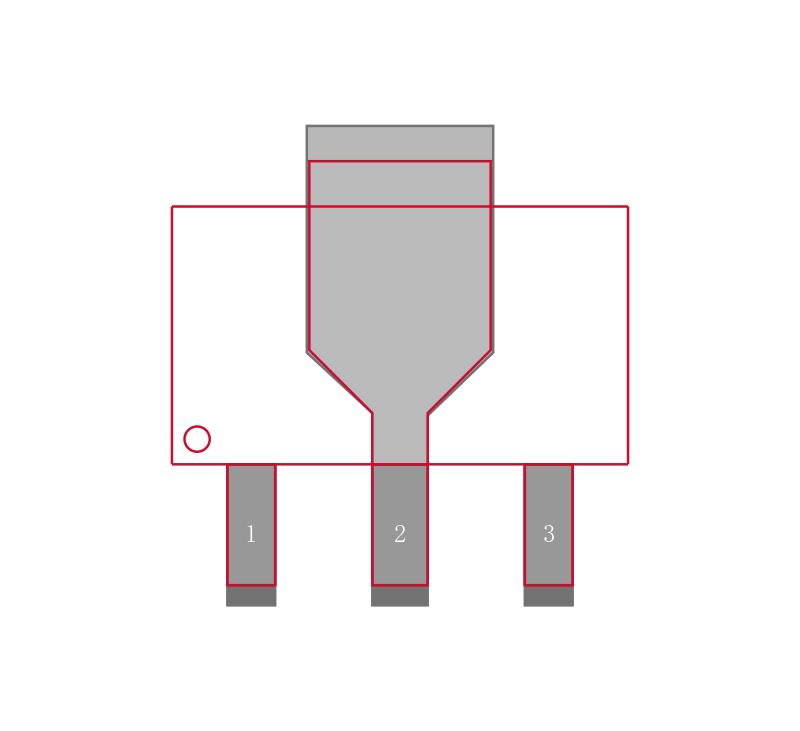

封装 SOT-89-3

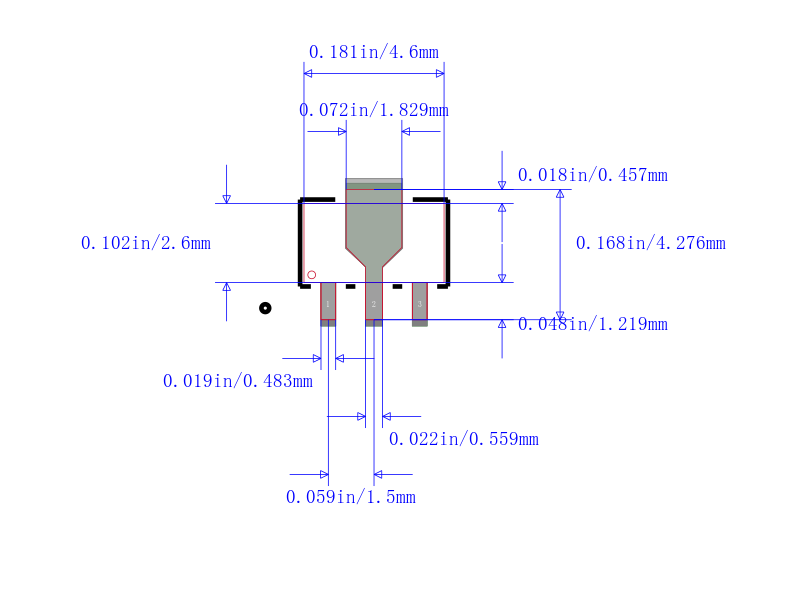

长度 4.6 mm
宽度 2.6 mm
高度 1.6 mm
封装 SOT-89-3
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
