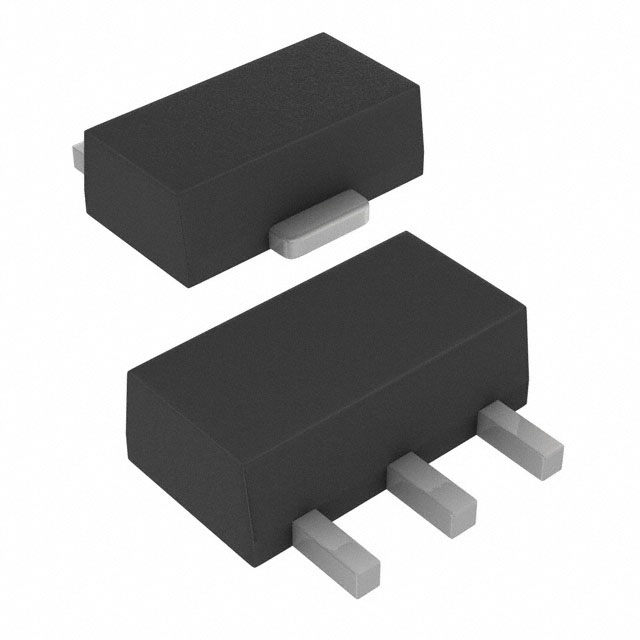

MCP1701AT-3002I/MB

MCP1701AT系列 250mA 3.0V 低压差 正向 稳压器-SOT-89-3

PMIC - 稳压器 - 线性 正 固定 输出 150mA SOT-89-3

得捷:
IC REG LINEAR 3V 150MA SOT89-3

立创商城:
MCP1701AT-3002I/MB

贸泽:
LDO Voltage Regulators Low Iq 250mA LDO

艾睿:
Keep calm and stay stable by implementing this LDO MCP1701AT-3002I/MB linear regulator developed by Microchip Technology. This device has a maximum power dissipation of 500 mW. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.4@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. This will operate at a maximum voltage of 10 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. Using a load regulation of 3% and line regulation of 0.3%/V is needed for a programmable DC power supply. Its maximum power dissipation is 500 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.7@150mA V.

Verical:
LDO Regulator Pos 3V 0.15A 4-Pin3+Tab SOT-89 T/R
