MAX4466EXK+T

MAXIM INTEGRATED PRODUCTS  MAX4466EXK+T  音频功率放大器, 1通道, 2.4V 至 5.5V, SC-70, 5 引脚

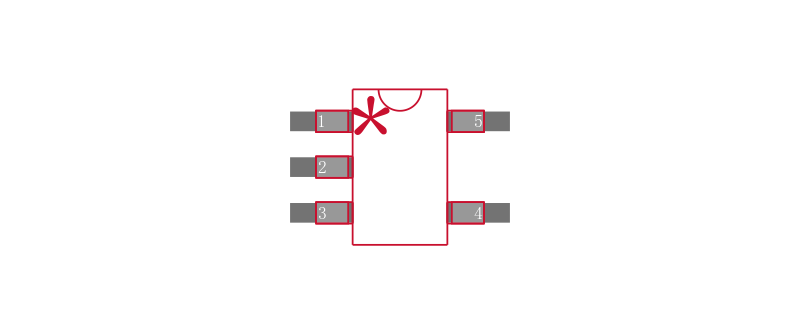

The is a low cost, micropower microphone preamplifier with complete shutdown in 5 pin SC-70 package. The low power, micropower op-amp designed to be used as microphone preamplifiers. This preamplifier is an excellent choice for noisy environments because of its high common mode rejection and excellent power supply rejection ratios. It has a minimum stable gain of +5V/V while providing a 600KHz gain bandwidth product. It can be used for full-range audio inputs. Typical applications include microphone preamplifiers, hearing aids, cellular phones, voice recognition systems, digital dictation devices, headsets and portable computing.

.

Supply voltage range is 2.4V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Excellent power supply rejection ratio of 112dB

.

Excellent common mode rejection ratio of 126dB

.

High AVOL of 125dB at RL = 100kohm

.

Low quiescent supply current of 24µA

.

Gain bandwidth product of 600KHz at AV >= 5
