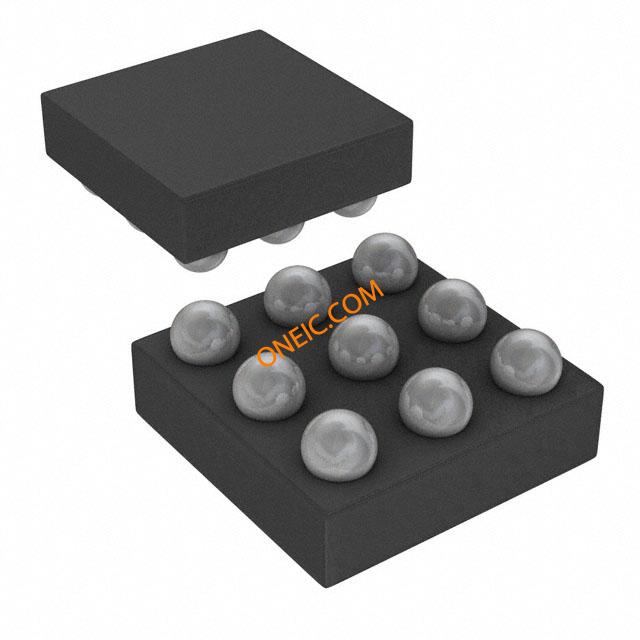

Linear IC - Audio amplifier Maxim Integrated MAX98304DEWL+T 1Channel mono Class D WLP 9 0.96x0.96
Amplifier IC 1-Channel Mono Class D 9-WLP .96x.96
得捷:
IC AMP CLASS D MONO 3.2W 9WLP
安富利:
The MAX98304 mono 3.2W Class D amplifier provides Class AB audio performance with Class D efficiency. This device offers five selectable gain settings 0dB, 3dB, 6dB, 9dB, and 12dB set by a single gain-select input GAIN.Active emissions-limiting, edge-rate, and overshoot control circuitry greatly reduces EMI. A filterless spread-spectrum modulation scheme eliminates the need for output filtering found in traditional Class D devices. These features reduce application component count.The IC"s 0.95mA at 3.7V 1.2mA at 5V quiescent current extends battery life in portable applications.The IC is available in a 9-bump 1.0mm x 1.0mm WLP with 0.3mm pitch that is specified over the extended -40°C to +85°C temperature range.
