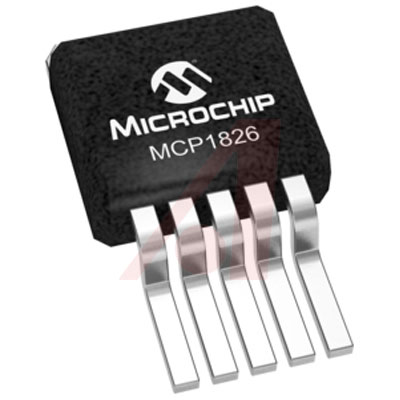

MCP1826 系列 3 V 1000 mA 低静态电流 LDO 稳压器-DDPAK-3
Linear Voltage Regulator IC 1 Output 1A 3-DDPAK
得捷:
IC REG LINEAR 3V 1A 3DDPAK
立创商城:
MCP1826S-3002E/EB
艾睿:
Say goodbye to unstable voltages with this LDO MCP1826S-3002E/EB linear regulator from Microchip Technology. Its typical dropout voltage at current is 0.25@1A V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 1Min A. It only needs a voltage of at least 2.3 V while not exceeding 6 V to effectively power your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. Using a load regulation of 0.5%Typ and line regulation of 0.05%/VTyp is needed for a programmable DC power supply. Its polarity is positive. The maximum dropout voltage is 0.4@1A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
1A CMOS LDO, Vout=3.0V, Extended Temp Range
安富利:
LDO Regulator Pos 3V 1A 4-Pin3+Tab DDPAK
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1826S-3002E/EB Microchip 微芯 | 当前型号 | 当前型号 |
MCP1826ST-3002E/EB 微芯 | 完全替代 | MCP1826S-3002E/EB和MCP1826ST-3002E/EB的区别 |
