MAX9700CETB+T

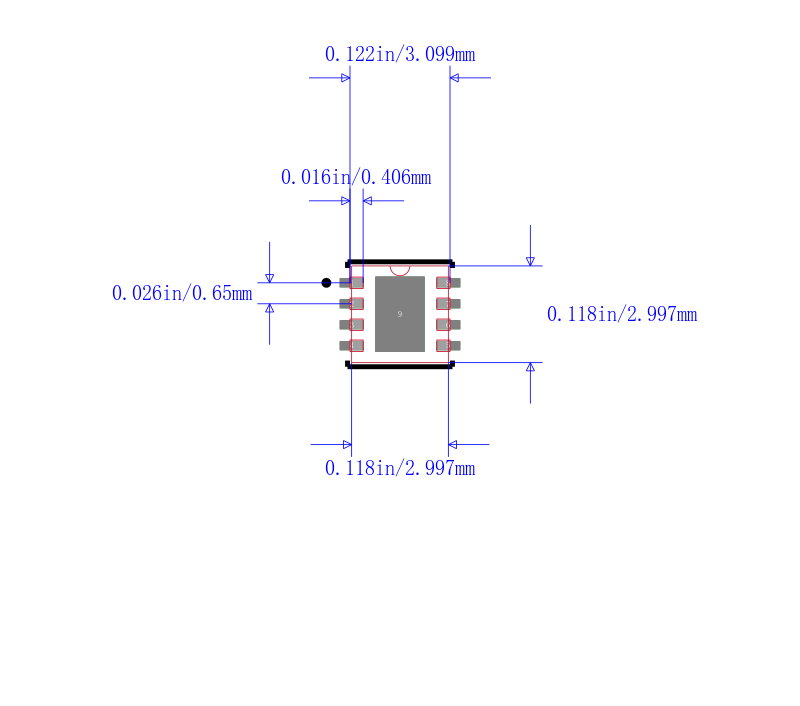

Audio Amplifier, 0.8W, 1Channels, 1 Func, BICMOS, 3 X 3MM, 0.8MM HEIGHT, MO-229, TDFN-10

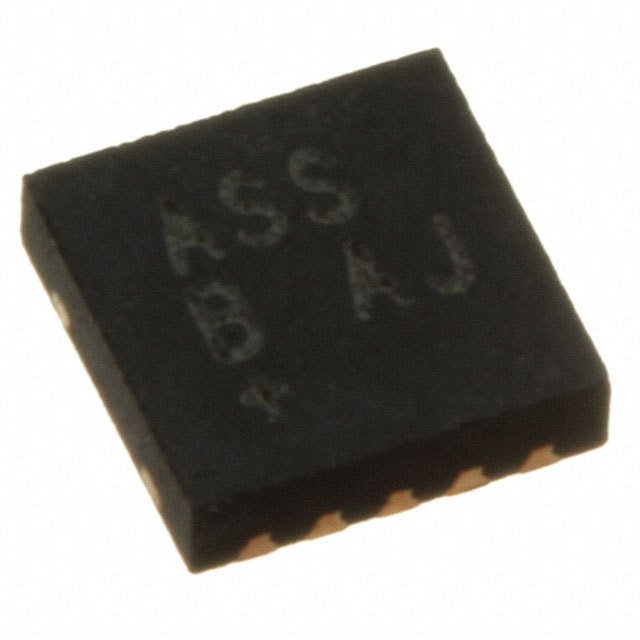

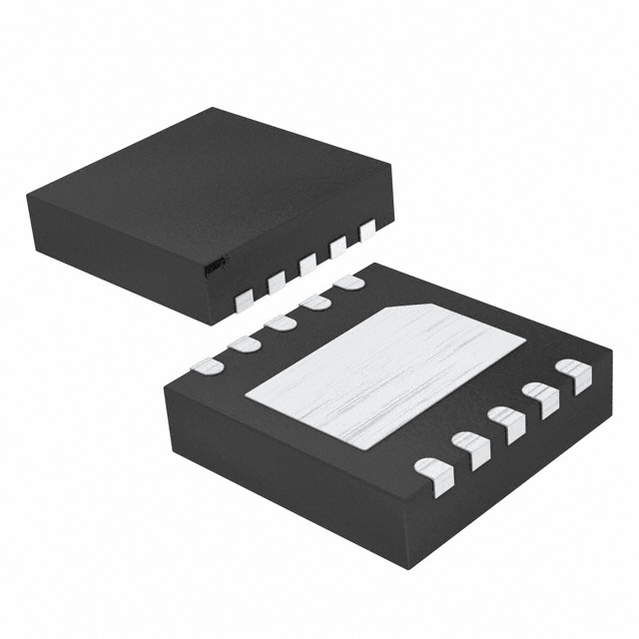

Amplifier IC 1-Channel Mono Class D 10-TDFN-EP 3x3

得捷:
IC AMP CLASS D MONO 1.6W 10TDFN

贸泽:
Audio Amplifiers 1.2W L-EMI Filterles Class D Audio Amp

安富利:
* Filterless Amplifier Passes FCC Radiated Emissions Standards with 100mm of Cable * Unique Spread-Spectrum Mode Offers 5dB Emissions Improvement Over Conventional Methods * Optional External SYNC Input * Simple Master-Slave Setup for Stereo Operation * 94% Efficiency * 1.2W into 8Ω * Low 0.01% THD+N * High PSRR 72dB at 217Hz * Integrated Click-and-Pop Suppression * Low Quiescent Current 4mA * Low-Power Shutdown Mode 0.1µA * Short-Circuit and Thermal-Overload Protection * Available in Thermally Efficient, Space-Saving Packages * 10-Pin TDFN 3mm x 3mm x 0.8mm * 10-Pin µMAX * 12-Bump UCSP 1.5mm x 2mm x 0.6mm

Win Source:
Amplifier IC 1-Channel Mono Class D 1.6W x 1 @ 6 Ohm 10-TDFN-EP 3x3
