MAX9724BEBC+TG45

为60mW ， DirectDrive立体声耳机放大器，具有低RF干扰敏感度和关机 60mW, DirectDrive, Stereo Headphone Amplifier with Low RF Susceptibility and Shutdown

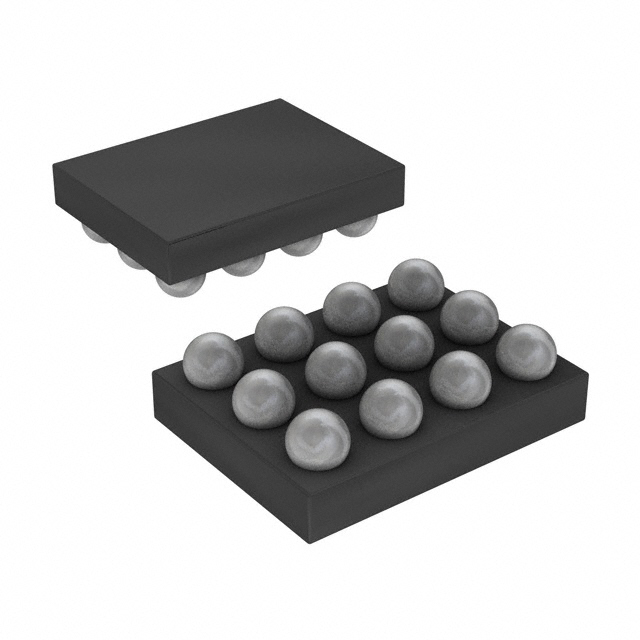

Amplifier IC Headphones, 2-Channel Stereo Class AB 12-UCSP

得捷:
IC AMP CLASS AB STER 45MW 12UCSP

安富利:
The MAX9724A/MAX9724B stereo headphone amplifiers are designed for portable equipment where board space is at a premium. These devices use a unique DirectDrive® architecture to produce a ground-referenced output from a single supply, eliminating the need for large DC-blocking capacitors, saving cost, board space, and component height. The MAX9724 suppresses RF radiation received by input and supply traces acting as antennas and prevents the amplifier from demodulating the coupled noise. The MAX9724A offers an externally adjustable gain while the MAX9724B has an internally preset gain of -1.5V/V. The MAX9724A/MAX9724B deliver up to 60mW per channel into a 32Ω load and have low 0.02% THD+N. An 80dB at 1kHz power-supply rejection ratio PSRR allows these devices to operate from noisy digital supplies without an additional linear regulator. Comprehensive click-and-pop circuitry suppresses audible clicks and pops on startup and shutdown.The MAX9724A/MAX9724B operate from a single 2.7V to 5.5V supply, consume only 3.5mA of supply current, feature short-circuit and thermal-overload protection, and are specified over the extended -40°C to +85°C temperature range. The devices are available in tiny 12-bump UCSP™ 1.5mm x 2mm and 12-pin thin QFN 3mm x 3mm x 0.8mm packages.

Win Source:
60mW, DirectDrive, Stereo Headphone Amplifier with Low RF Susceptibility and Shutdown
