MAXIM INTEGRATED PRODUCTS MAX4061ETA+T 音频功率放大器, 1通道, 2.4V 至 5.5V, TDFN, 8 引脚
The is a differential microphone preamplifier with internal bias and complete shutdown in 8 pin TDFN package. It is a differential-input microphone preamplifier optimized for notebook and PDA audio systems. This device features adjustable gain with excellent power-supply rejection and common- mode rejection ratios, making them ideal for low noise applications in portable audio systems. The differential gain of the MAX4061 is set with a single resistor and includes a complete shutdown mode. In shutdown, the supply current is reduced to 0.3µA and the current to the microphone bias is cut off for ultimate power savings. Typical applications include USB audio peripherals, AES-42-compliant, microphones and signal conditioning.
供电电流 0.75 mA
通道数 1
针脚数 8
耗散功率 1951.2 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1951.2 mW
共模抑制比Min 70 dB
电源电压 2.4V ~ 5.5V
安装方式 Surface Mount
引脚数 8

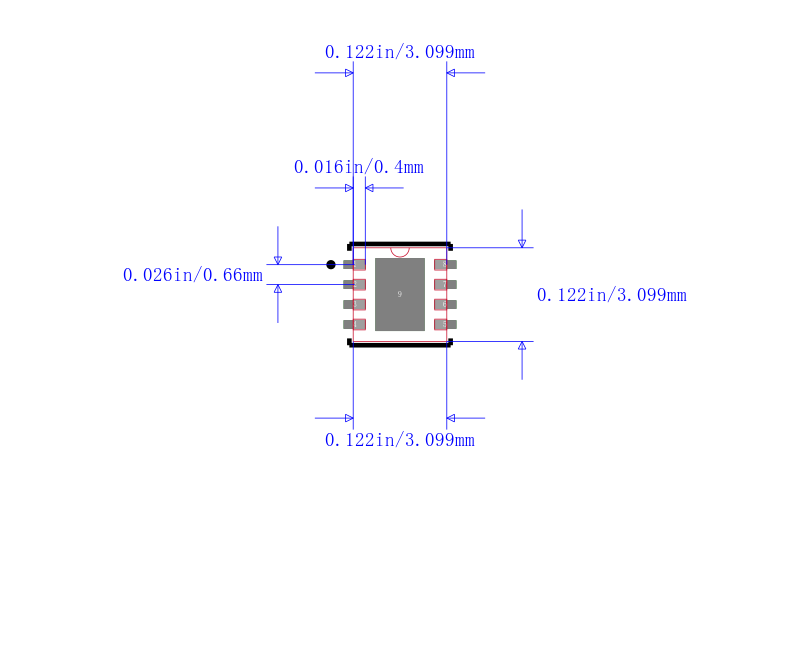

封装 TDFN-8
封装 TDFN-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 信号处理, 便携式器材, Signal Processing, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX4061ETA+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX4061ETA 美信 | 类似代替 | MAX4061ETA+T和MAX4061ETA的区别 |
MAX4061ETA+ 美信 | 功能相似 | MAX4061ETA+T和MAX4061ETA+的区别 |
