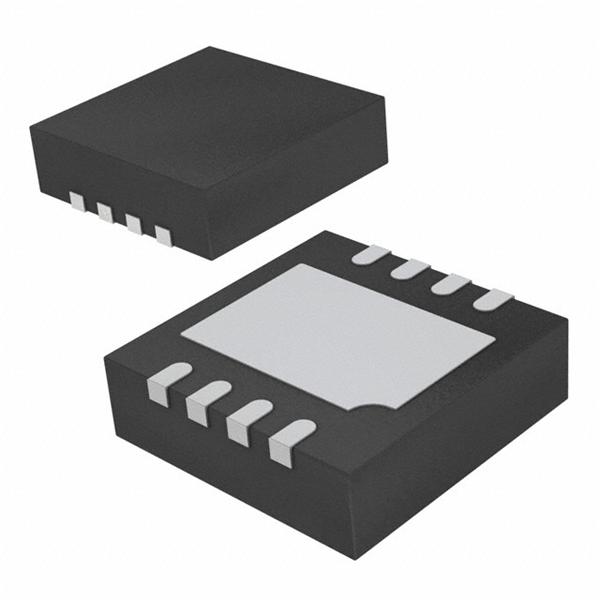

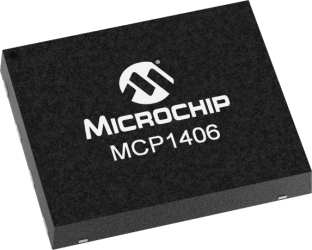

MCP1406系列 6A 18V最高电压 高速 低边 反相 MOSFET驱动器-DFN-8
Technology"s power driver will help with fast switching within your circuit. This device has a maximum propagation delay time of 55 ns. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This gate driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V.
电源电压DC 4.50V min
上升/下降时间 20 ns
输出接口数 1
输出电流 6 A
上升时间 30 ns
输出电流Max 6 A
下降时间 30 ns
下降时间Max 30 ns
上升时间Max 30 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 18V
电源电压Max 18 V
电源电压Min 4.5 V
安装方式 Surface Mount

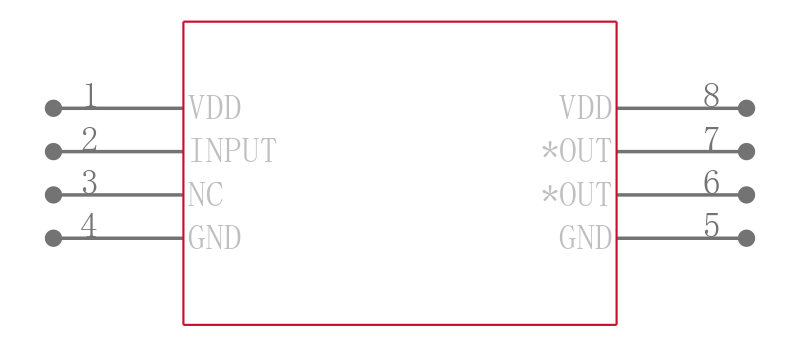

引脚数 8

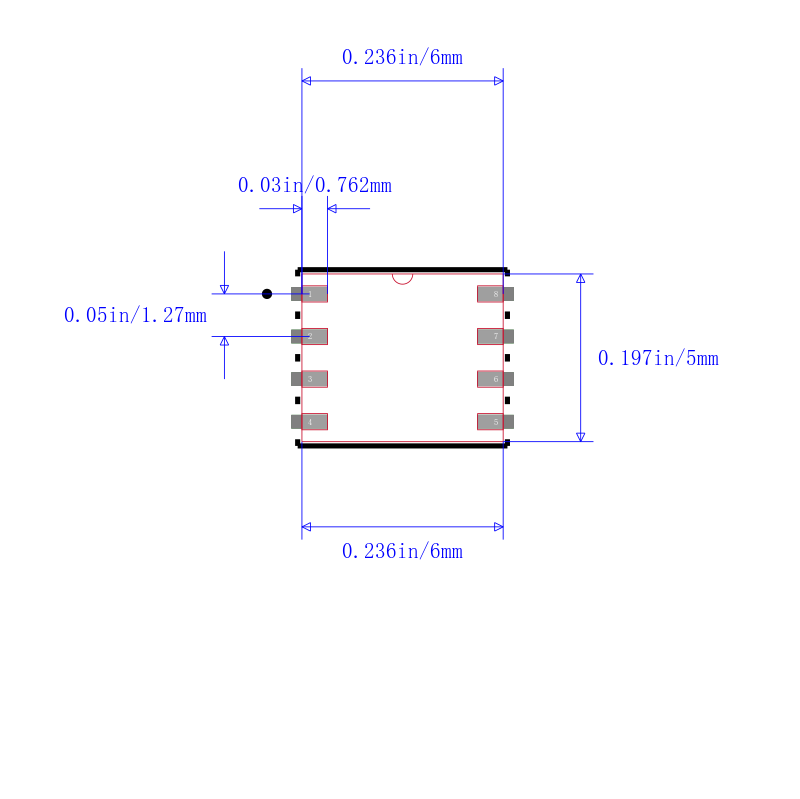

封装 DFN-8
封装 DFN-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCP1406-E/MF Microchip 微芯 | 当前型号 | 当前型号 |
MCP1406-E/P 微芯 | 完全替代 | MCP1406-E/MF和MCP1406-E/P的区别 |
MCP1406T-E/SN 微芯 | 完全替代 | MCP1406-E/MF和MCP1406T-E/SN的区别 |
MCP1406T-E/MF 微芯 | 完全替代 | MCP1406-E/MF和MCP1406T-E/MF的区别 |
