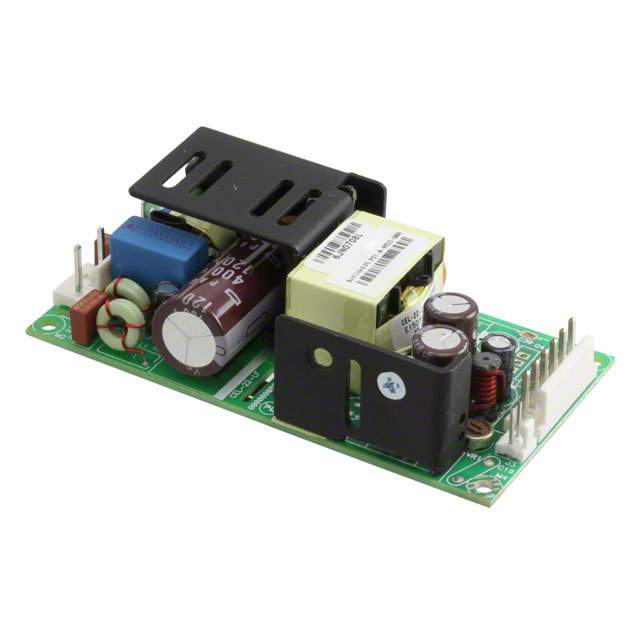

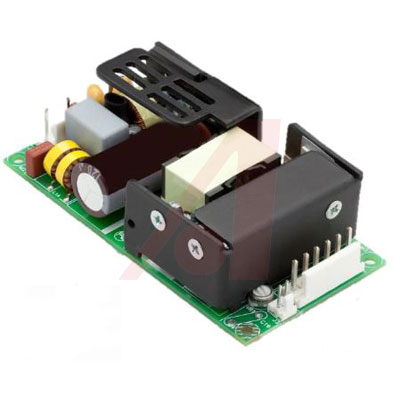

MBC40-1015G

AC-DC Power Supply Single-OUT 15V 2.7A 40W

Power-One"s MBC Series of efficient, medical equipment open-frame power supplies utilizes a universal 90-264 VAC input range with active power factor correction PFC and 250 W of output power. This power supply provides a single 12 V, 24 V or 48 V output with high isolation and low leakage, plus efficiency exceeding 90% at 230 VAC in a small 3" × 5" package.

With approval to Means of Patient Protection MOPP, the MBC250 is suitable for use in body floating BF applications wherein equipment may come in direct contact with the patient, such as blood pressure monitors or ultrasound equipment.

**MBC40 Series Features:**

* 40 W Convection Cooled

* –20°C to 50°C Full Load Operation

* 2 × MOPP

* 90-264 VAC Input

* 2" × 4" × 1.2" 50.8 mm × 101.6 mm × 30.5 mm

* No Minimum Load Required Single Output Models

* Conducted EMI EN 55022-B, FCC Part 15 Level B

* Medical Safety Agency Approvals

* No Load Power <0.3 W
