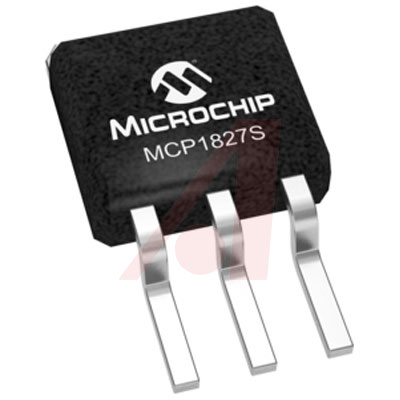

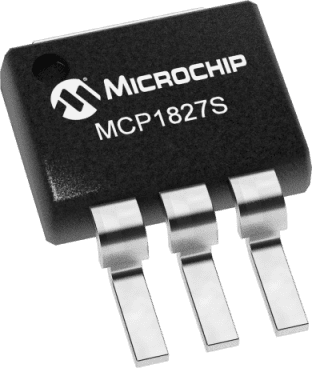

MCP1827ST系列 1.5A 5V 低静态电流 LDO稳压器-DDPAK-3
Linear Voltage Regulator IC 1 Output 1.5A 3-DDPAK
立创商城:
MCP1827ST-5002E/EB
得捷:
IC REG LINEAR 5V 1.5A 3DDPAK
艾睿:
Keep calm and stay stable by implementing this LDO MCP1827ST-5002E/EB linear regulator developed by Microchip Technology. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.33@1.5A V. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Using the part will provide the power your application needs by requiring a voltage only of 2.3 V and not exceeding a voltage of 6 V. With a fixed output that has a voltage of 5 V, this is power management at its best. By operating at a load regulation of 0.5%Typ and line regulation of 0.05%/VTyp you can provide a constant voltage at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.6@1.5A V.
Allied Electronics:
1.5A CMOS LDO, Vout=5.0V, Extended TempRange
安富利:
LDO Regulator Pos 5V 1.5A 4-Pin3+Tab DDPAK T/R
Chip1Stop:
LDO Regulator Pos 5V 1.5A Automotive 4-Pin3+Tab DDPAK T/R
输出接口数 1
输入电压DC 2.30V min
输出电压 5 V
输出电流 1.5 A
静态电流 120 µA
输出电容类型 Ceramic
跌落电压 0.33V @1.5A
输入电压Max 6 V
输入电压Min 2.3 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 4
封装 TO-263-4
封装 TO-263-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1827ST-5002E/EB Microchip 微芯 | 当前型号 | 当前型号 |
MCP1827S-5002E/EB 微芯 | 类似代替 | MCP1827ST-5002E/EB和MCP1827S-5002E/EB的区别 |
