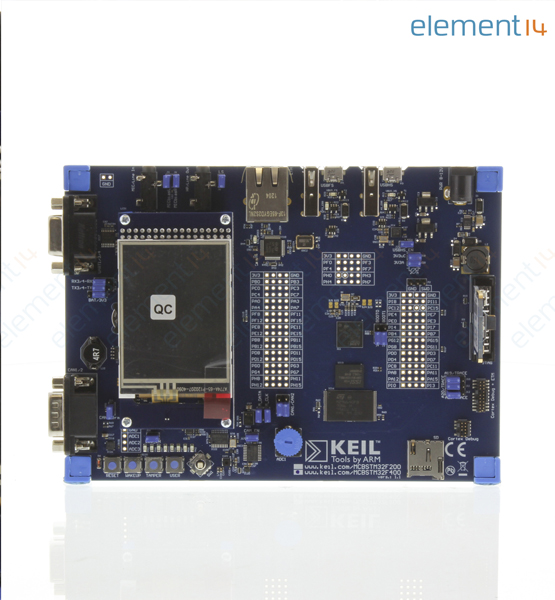

MCBSTM32F400UME

STM32F407IG Microcontroller Starter Kit 25MHz/168MHz CPU 2.1875Mb RAM 8KB/1Mb/8Mb/512Mb Flash/I2C EEPROM/NAND Flash/NOR Flash

is a Keil Starter Kit for STM32 F4xx series of ARM Cortex-M3 processor-based devices includes the ULINK-ME debug adapter. The STM32F405xx and STM32F407xx family is based on the high-performance ARM Cortex-M4 32bit RISC core operating at a frequency of up to 168MHz. The Cortex-M4 core features a Floating point unit FPU single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit MPU which enhances application security. MCBSTM32F400UME enables user to create and test working programs based on the STMicroelectronics STM32 F4xx series of ARM Cortex-M4 processor-based devices.

.

168MHz STM32F407IG ARM Cortex-M4 processor-based MCU in 176 pin BGA

.

On-Chip Memory: 1MB Flash & 192kB RAM

.

External Memory: 8MB NOR Flash, 512MB NAND Flash, 2MB SRAM, 8kB I2C EEPROM with NFC interface

.

2.4 inch Colour QVGA TFT LCD with resistive touch screen

.

10/100 Ethernet Port, 1 CAN Interface, Serial/UART Port

.

USB 2.0 Full Speed - USB, USB-OTG, & USB Host

.

MicroSD Card Interface

.

5 position Joystick, 3-axis digital Accelerometer, 3-axis digital Gyroscope

.

Digital Microphone, Digital VGA Camera

.

Push-Buttons for Reset, Wakeup, Tamper and User, 8LEDs
