MCP1632T-BAE/MS

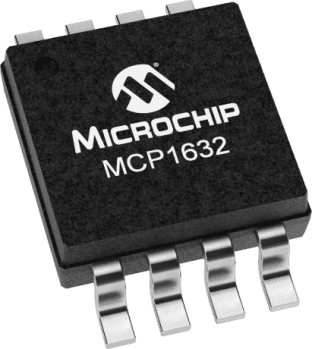

MCP1632T-BAE/MS图片1

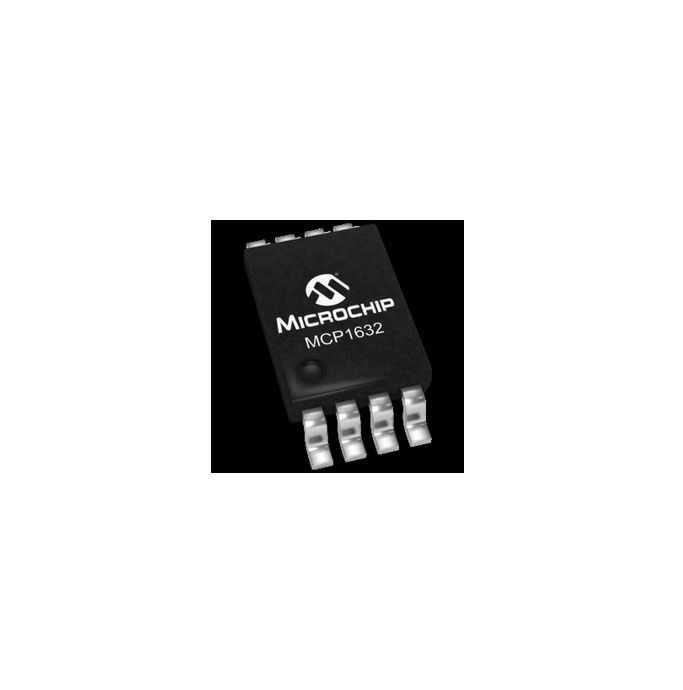

MCP1632T-BAE/MS图片2
MCP1632T-BAE/MS图片3
MCP1632T-BAE/MS图片4
MCP1632T-BAE/MS图片5
MCP1632T-BAE/MS图片6
MCP1632T-BAE/MS图片7

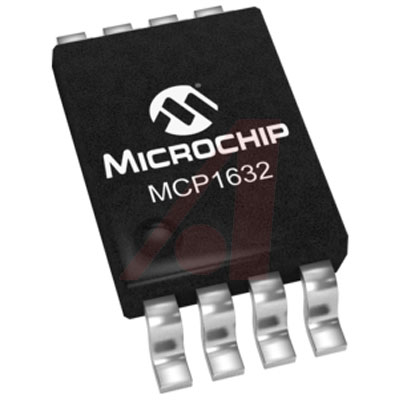

MCP1632T-BAE/MS图片8
MCP1632T-BAE/MS图片9
MCP1632T-BAE/MS概述

升压型 升降压型

Boost, Cuk, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-MSOP


立创商城:
升压型 升降压型


得捷:
IC REG CTRLR MULT TOPOLOGY 8MSOP


艾睿:
Current Mode PWM Controller 8-Pin MSOP T/R


Allied Electronics:
Standalone Low-Side PWM Controller withIntegrated MOSFET Driver


安富利:
Current Mode PWM Controller 8-Pin MSOP T/R


MCP1632T-BAE/MS中文资料参数规格
技术参数

输出接口数 1

上升时间 18 ns

开关频率 600 kHz

最大占空比 0.85

工作温度Max 125 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 8

封装 MSOP-8

外形尺寸

高度 0.85 mm

封装 MSOP-8

物理参数

工作温度 -40℃ ~ 125℃ TJ

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

MCP1632T-BAE/MS引脚图与封装图

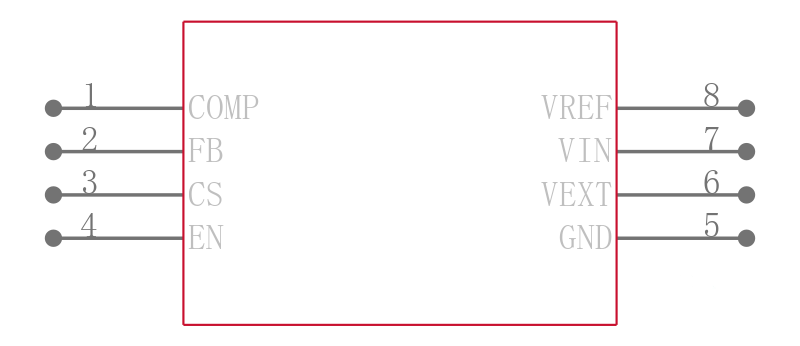

MCP1632T-BAE/MS引脚图

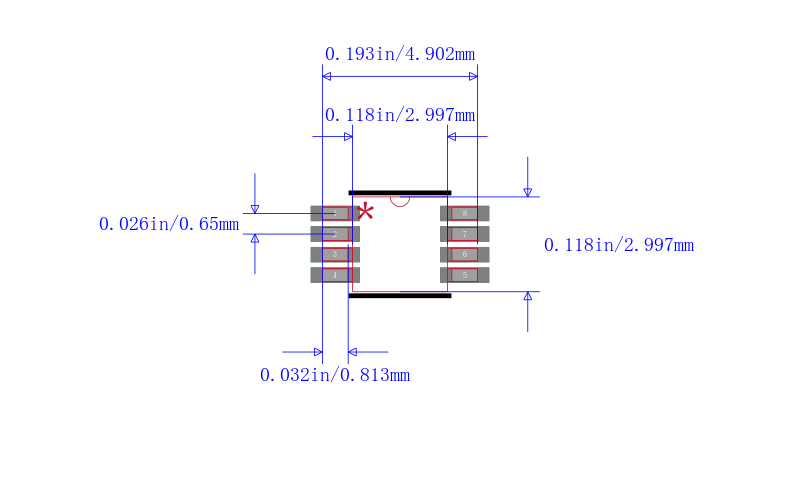

MCP1632T-BAE/MS封装图
MCP1632T-BAE/MS封装焊盘图
在线购买MCP1632T-BAE/MS
型号: MCP1632T-BAE/MS
制造商: Microchip 微芯
描述:升压型 升降压型
