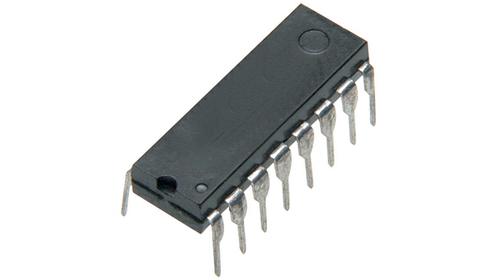

Decoder/Demultiplexer Dual 2-to-4 16Pin PDIP Tube
Have multiple states to choose from in a logic circuit? Then look no further, this from STMicroelectronics is all you need to select between states. This decoder has an operating temperature range of -55 °C to 125 °C. This device comes in tube packaging. This inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V min
输出接口数 4
触点类型 DP4T
电路数 2
耗散功率 500 mW
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
长度 20 mm
宽度 7.1 mm
高度 5.1 mm
封装 DIP-16
重量 0.004535924 kg
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
M74HC139B1R ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
CD74HC139EE4 德州仪器 | 类似代替 | M74HC139B1R和CD74HC139EE4的区别 |
MC74HC139ANG 安森美 | 功能相似 | M74HC139B1R和MC74HC139ANG的区别 |
74HC139N,652 恩智浦 | 功能相似 | M74HC139B1R和74HC139N,652的区别 |
